产品详情
| 技术规格: |
| x轴纵向移动460毫米 |
| y轴垂直移动320毫米 |
| z轴横向移动660毫米 |
| c轴转台旋转范围+/- 200 |
| 工件夹具ISO 50 |
| 最大值工件直径320毫米 |
| 最大值工件长度周边磨削350 mm |
| 最大工件重量50千克 |
| 最大砂轮直径200毫米 |
| 研磨主轴驱动功率14.5 kW |
| 研磨主轴速度在0–9500转/分之间无级变化 |
| 连接值400伏/ 50赫兹/ 25千伏安 |
| 尺寸宽x深x高(无吸力)3530 x 2930 x 2273毫米 |
| 重量大约。4600公斤 |
| 配件: |
| 托盘装载机，用于直径为3 - 32毫米的圆柱形工具 |
| 8折砂轮更换器 |
| 软件工具studio标准版和高级版 |
| 软件工具studio选项步骤工具 |
| 工具工作室选项轮廓灯软件 |
| 软件工具工作室选项钻孔 |
| 软件包1(带锐边、拐角和全半径的圆柱形工具) |
| 软件包2(带锐边、拐角和全半径的锥形螺旋工具) |
| 软件包3(钻孔和分步钻孔) |
| 软件包4(阶段工具) |
| 软件包7/37(等高线) |
| 软件包16(预热程序) |
| Heli-Flute & Cone(圆柱和圆锥铣刀的切屑空间计算程序) |
| 线性轴X、Y、Z上的玻璃标尺 |
| 完整的液压组件(液压装置和液压准备) |
| 无级速度控制 |
| 气动工件夹紧 |
| 调查 |
| 自动灭火系统 |
| 静电烟尘分离器 |
| 油盘 |
| 自动中央润滑 |
| 2个砂轮架 |
| Technical specifications: |
| · X - axis longitudinal movement 460 mm |
| · Y - axis vertical movement 320 mm |
| · Z - axis transverse movement 660 mm |
| · C - axis rotary table swivel range +/- 200° |
| · workpiece holder ISO 50 |
| · max. workpiece diameter 320 mm |
| · max. workpiece length peripheral grinding 350 mm |
| · max Workpiece weight 50 kg |
| · maximum grinding wheel diameter 200 mm |
| · grinding spindle drive power 14.5 kW |
| · grinding spindle speed infinitely variable 0 – 9500 rpm |
| · connection value 400 V / 50 Hz / 25 kVA |
| · dimensions W x D x H (without suction) 3530 x 2930 x 2273 mm |
| · weight approx. 4600 kg |
| Accessories: |

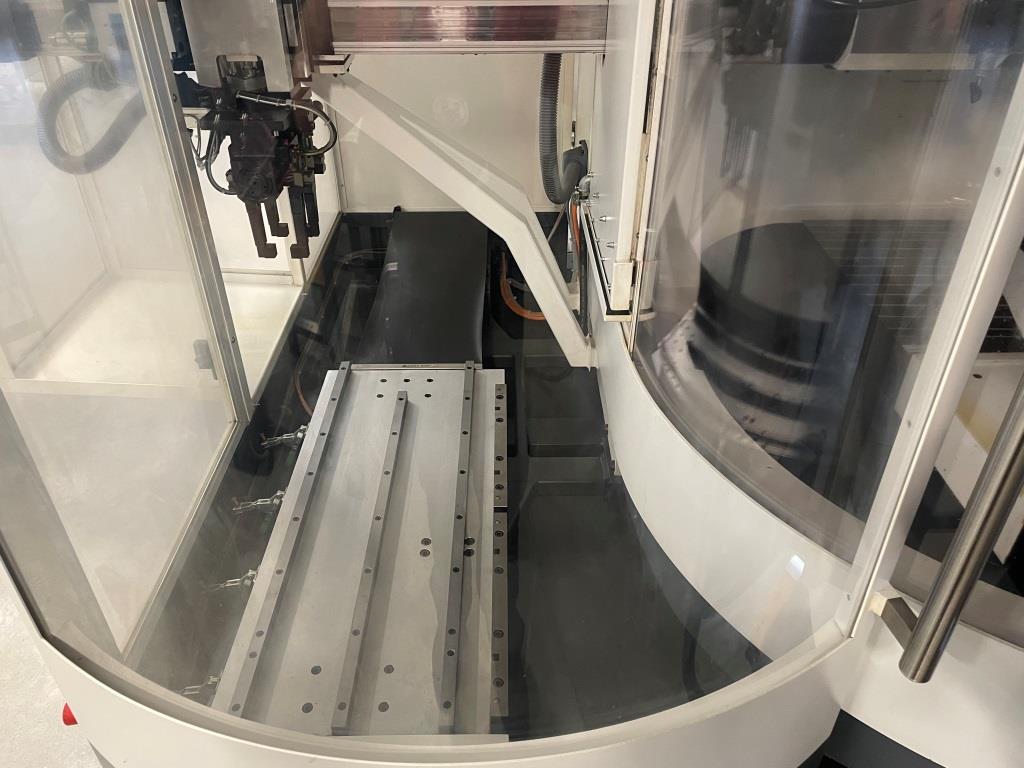

| · Pallet loader for cylindrical tools from 3 - 32 mm diameter |

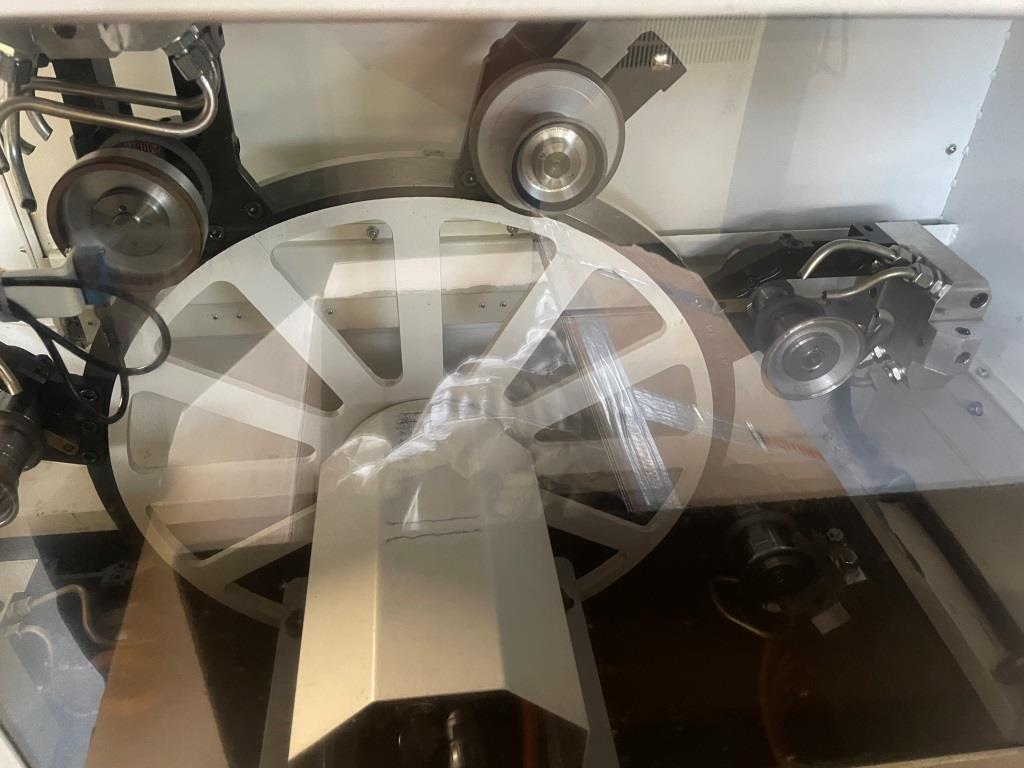

| · 8-fold grinding wheel changer |
| · Software Toolstudio Standard & Advanced |
| · Software Toolstudio Option Step tools |
| · Toolstudio Option Profile light software |
| · Software Toolstudio Option drillls |
| · Software package 1 (cylindrical tools with sharp edges, corner and full radius) |
| · Software package 2 (conical spiral tools with sharp edges, corner and full radius) |
| · Software package 3 (drills and step drills) |
| · Software package 4 (stage tools) |
| · Software package 7/37 (contours) |
| · Software package 16 (warm-up program) |
| · Heli-Flute & Cone (chip space calculation program for cylindrical and conical milling cutters) |
| · Glass scales in the linear axes X, Y, Z |

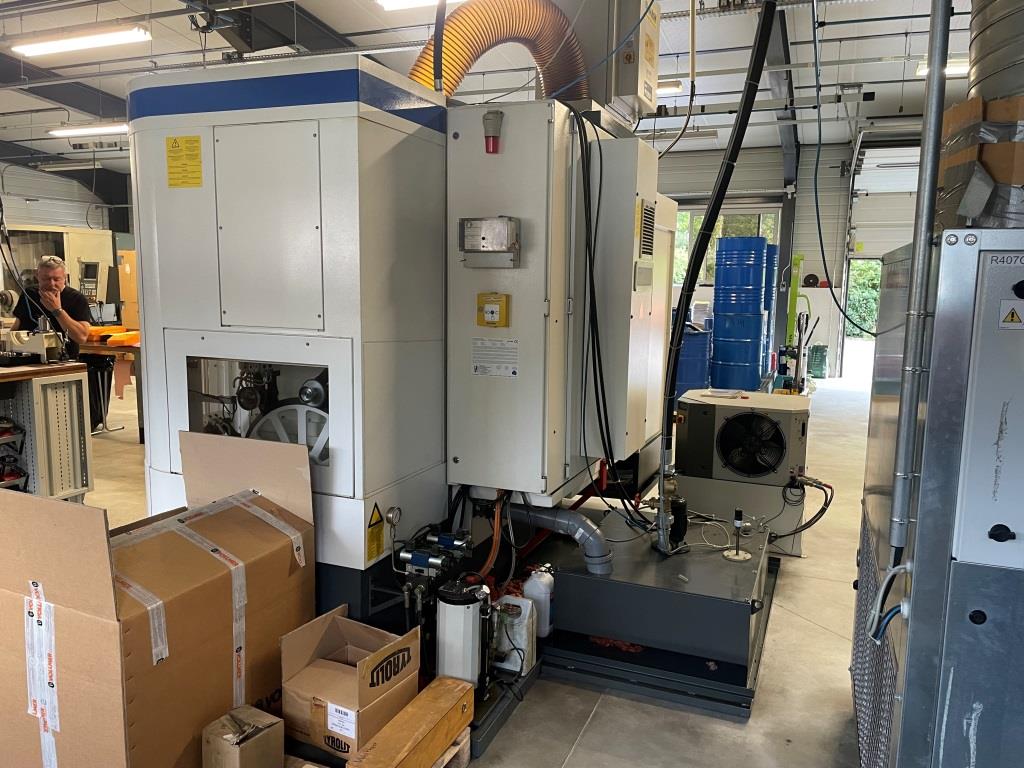

| · complete hydraulic package (hydraulic unit and hydraulic preparation) |
| · stepless speed control |
| · pneumatic workpiece clamping |
| · probe |
| · automatic fire extinguishing system |
| · electrostatic fume separator |
| · oil pan |
| · automatic central lubrication |
| · 2 grinding wheel mounts |
