产品详情
| 控制 |
| 磨头，磨头 |
| 功率 |
| 主轴转速 |
| 纺锤鼻 |
| 最大车轮直径 |
| 最大轮数 |
| 直线轴 |
| 增量长度测量系统 |
| 行程 |
| 最高时速 |
| 精度 |
| 速率 |
| 驱动力 |
| 旋转轴 |
| 角 |
| 最高时速 |
| 比率 |
| 驾驶 |
| 决议 |
| 旋转轴 |
| 角 |
| 最高时速 |
| 决议 |
| 失速转矩 |
| 额定输出 |
| 变尖 |
| 中心高度 |
| 各种配件： |
| 机器人Fanuc LR Mate 200iC-5L |
| 机油冷却器 |

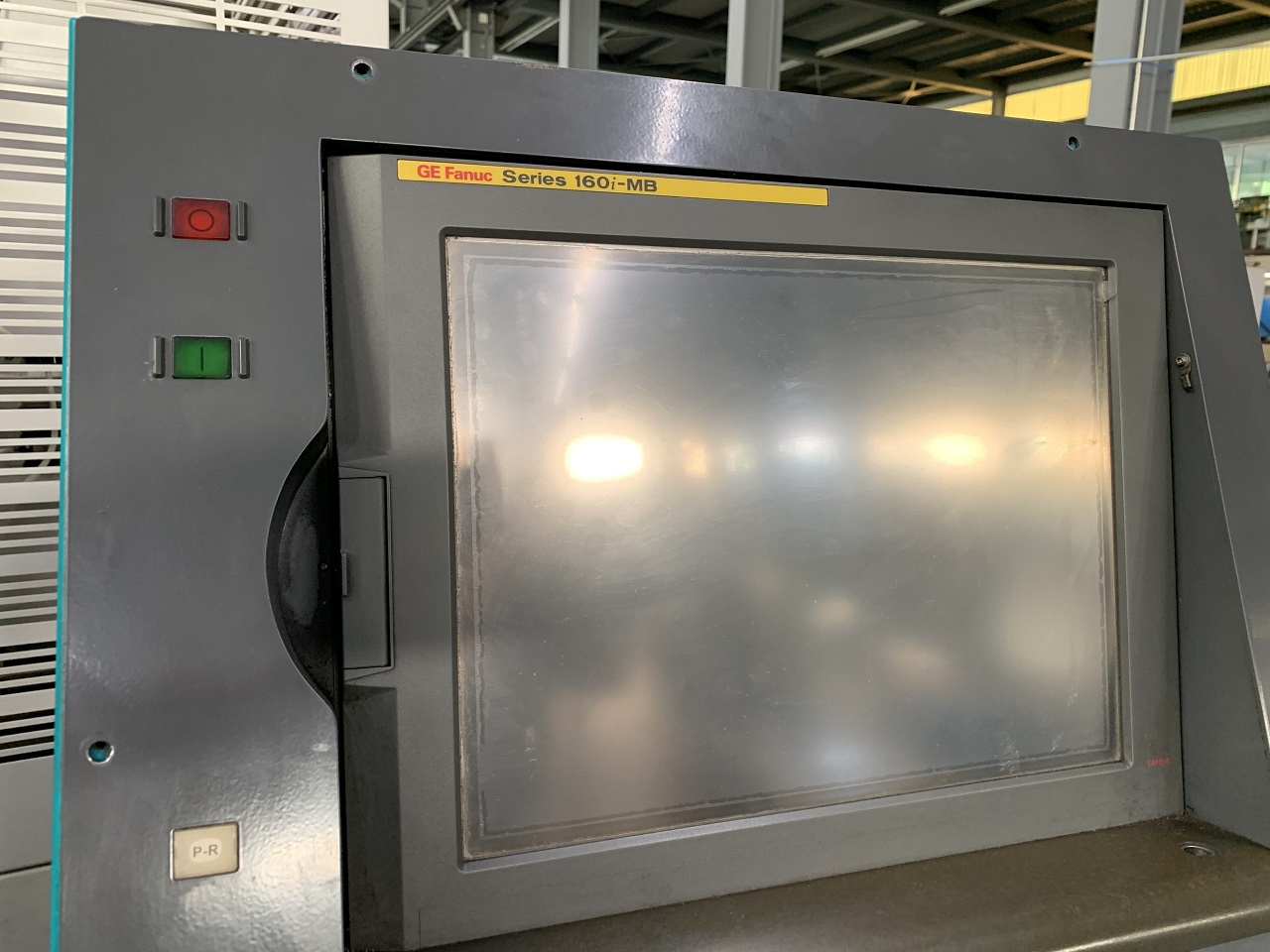

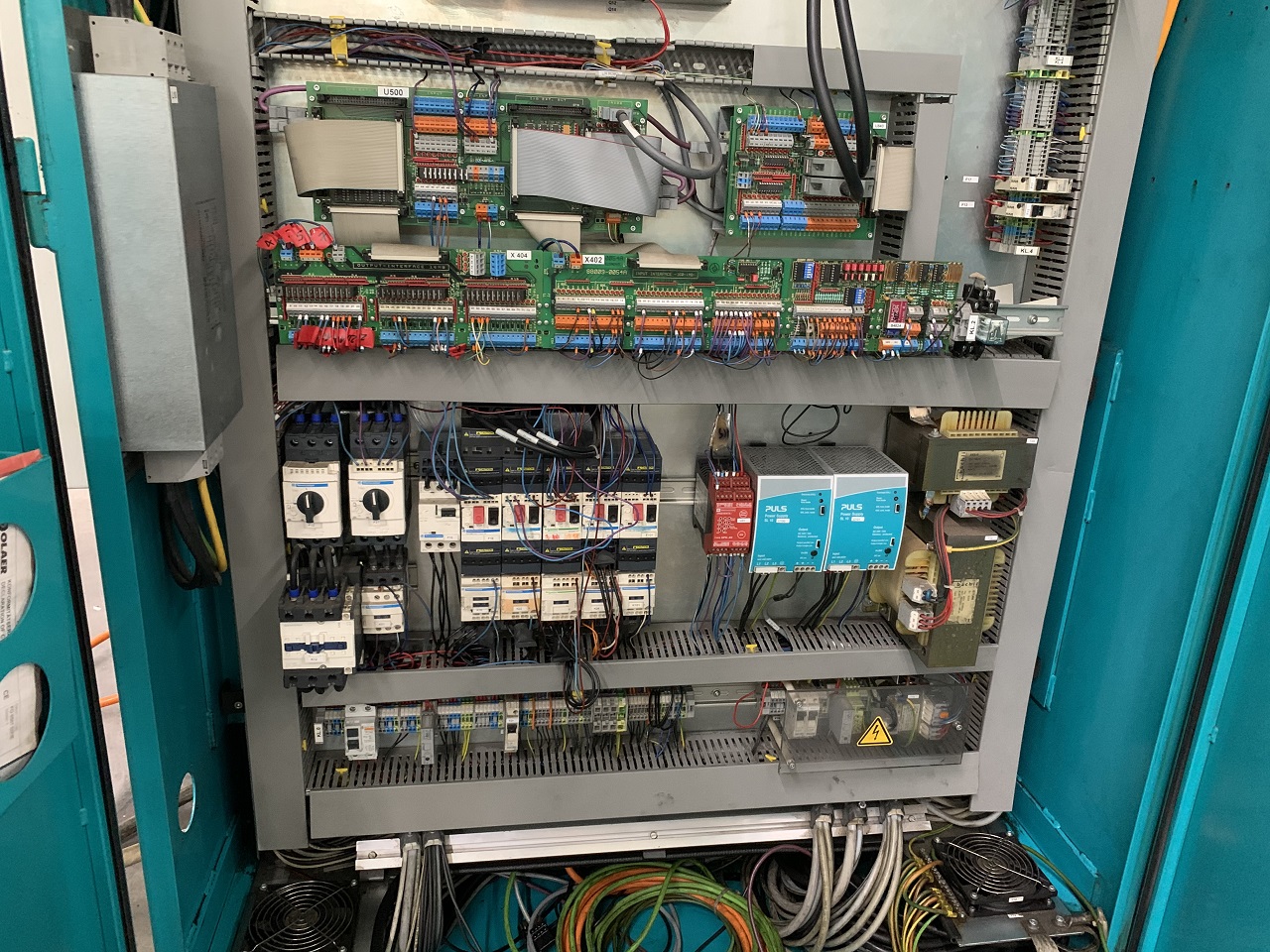

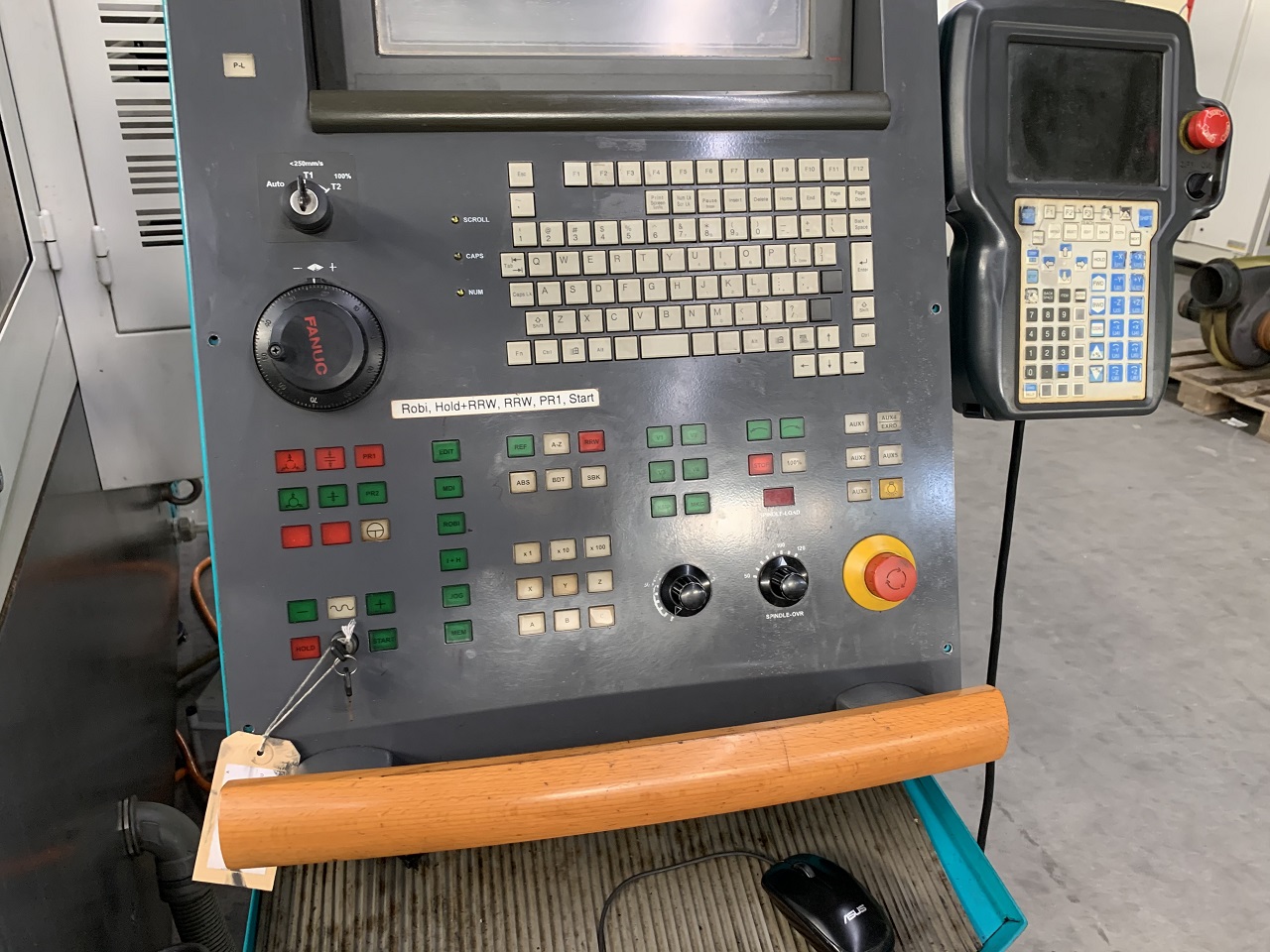

| Control | GE Fanuc | 160i-MB |

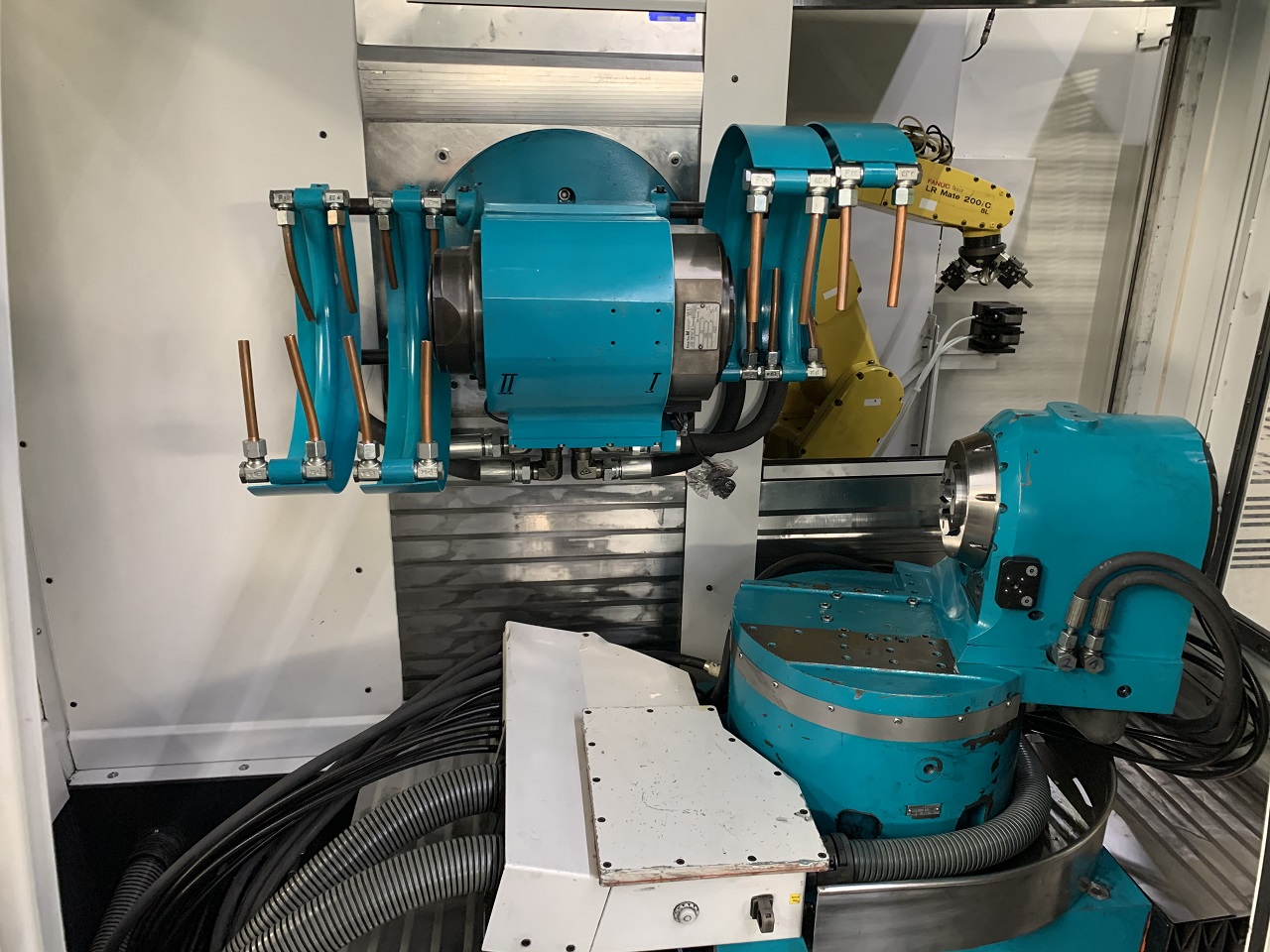

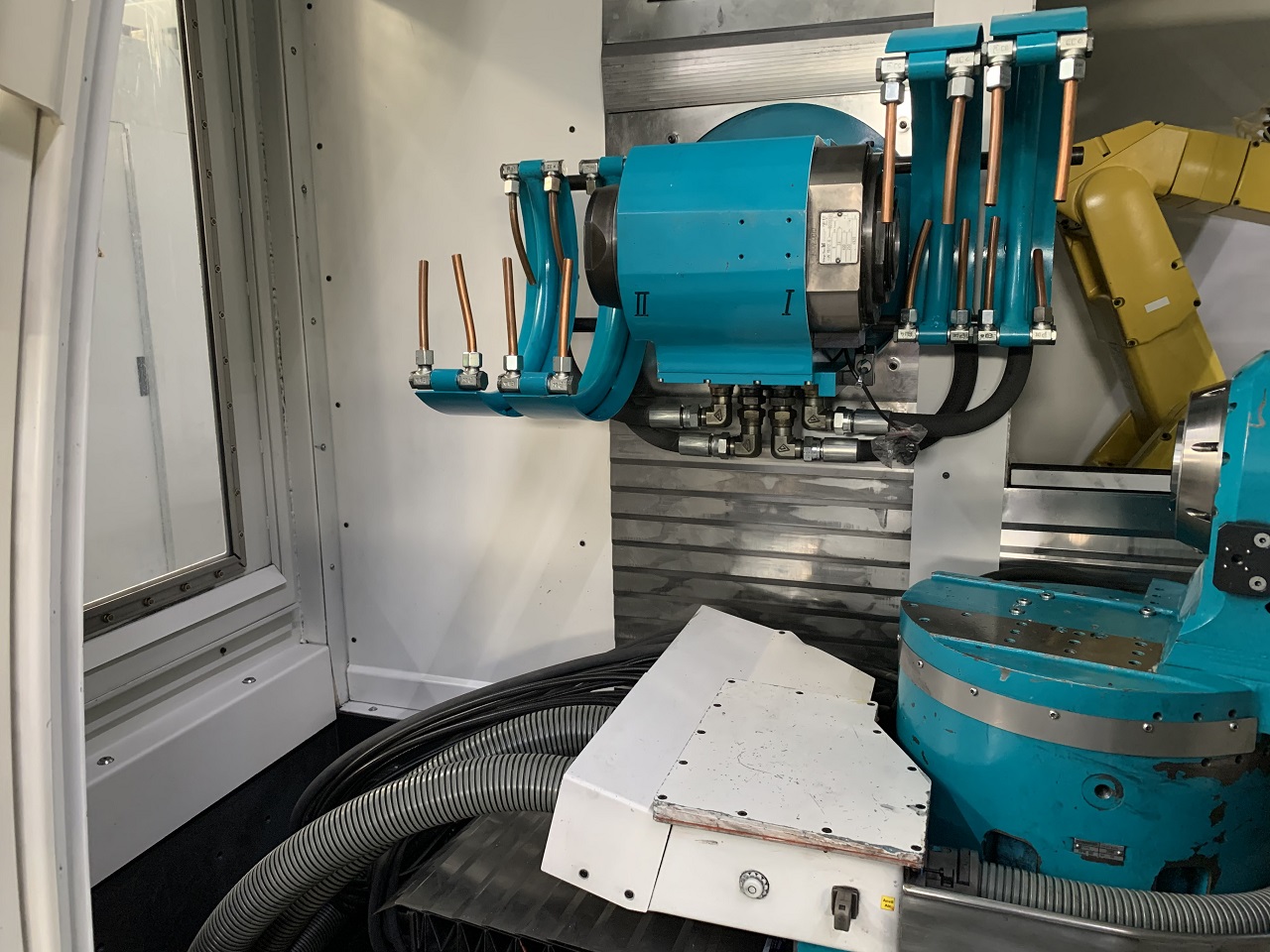

| GRINDING HEAD, GRINDING SPINDLE | ||
| Power | 9 | kW |
| Spindle speed | 50…10'000 | min-1 |
| Spindle nose | HSK | 80 |
| Wheel diameter, max | 300 | mm |
| Wheel number, max | 6 | |
| LINEAR-AXES | X-axis / Y-axis / | Z-axis |
| Incremental length measuring system | 0.1 µm / 0.1 µm / 0.1 | µm |
| Travel | 420 mm / 310 mm / 340 | mm |
| Max speed | 20'000 min-1 / 8'000 min-1 / 20'000 | min-1 |
| Resolution | 10 nm / 10 nm / 10 | nm |
| Ratio | 1 : 1 / 1 : 1 / 1 : | 1 |
| Drive power | 3 kN / 4,5 kN / 3 | kN |

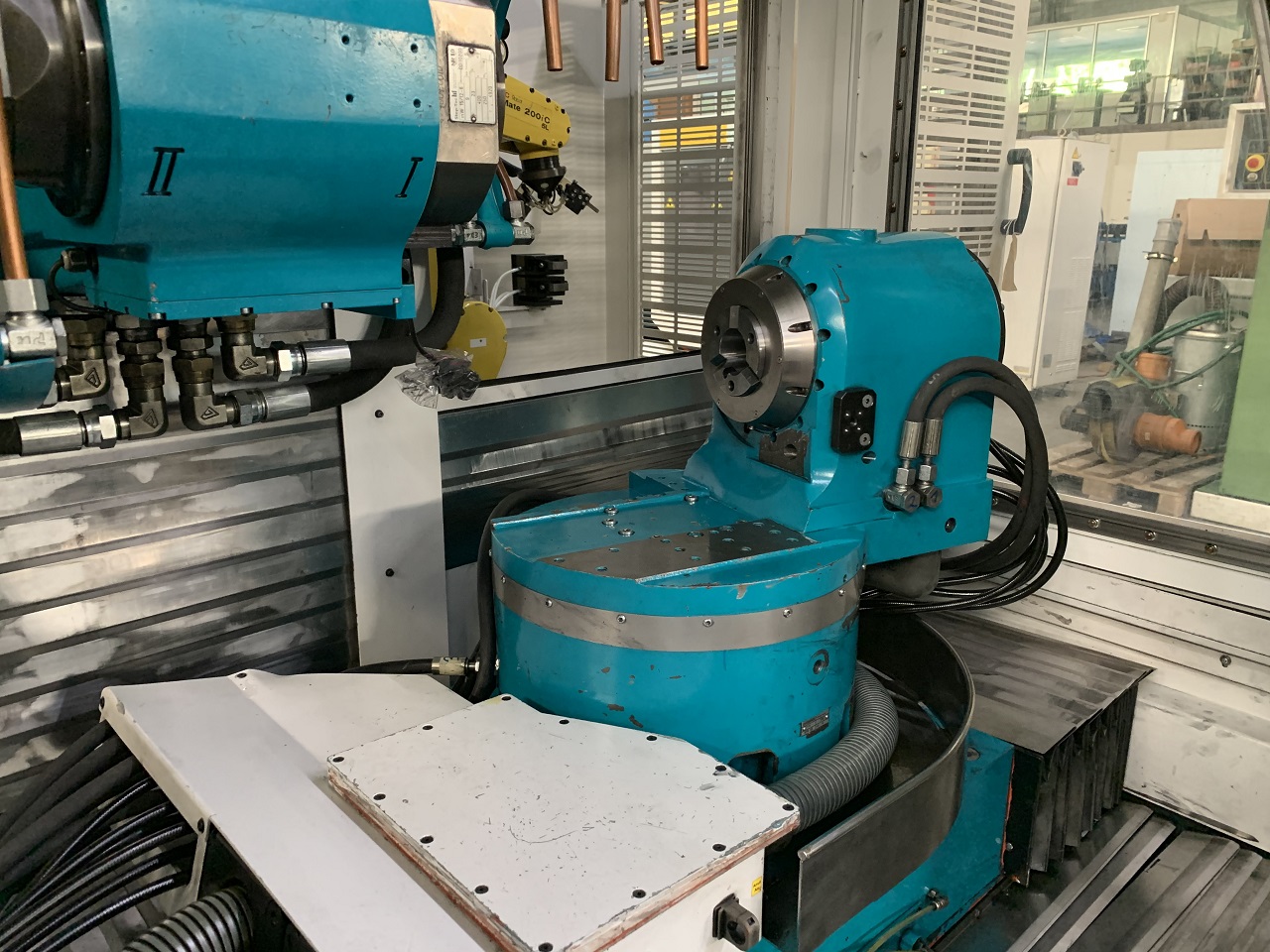

| SWIVEL-AXES | B-axis / | C-axis |
| Angle | +/- 90° / +/- | 180° |
| Max speed | 108°/sec. / | 50°/sec. |
| Ratio | direct / 1 : | 250 |
| drive | 1.0kW, 6Nm / | 8Nm |
| Resolution | 0,0001° / | 0,001° |
| ROTATING AXIS | A-axi | s |
| Angle | infinit | e |
| Max speed | 2400°/sec | . |
| Resolution | 0,0001 | ° |
| Stall torque | 35 | Nm |
| Rated output | 1.5 | kW |
| Taper | ISO | 40 |
| Center height | 151 | mm |
| Various accessories: | ||

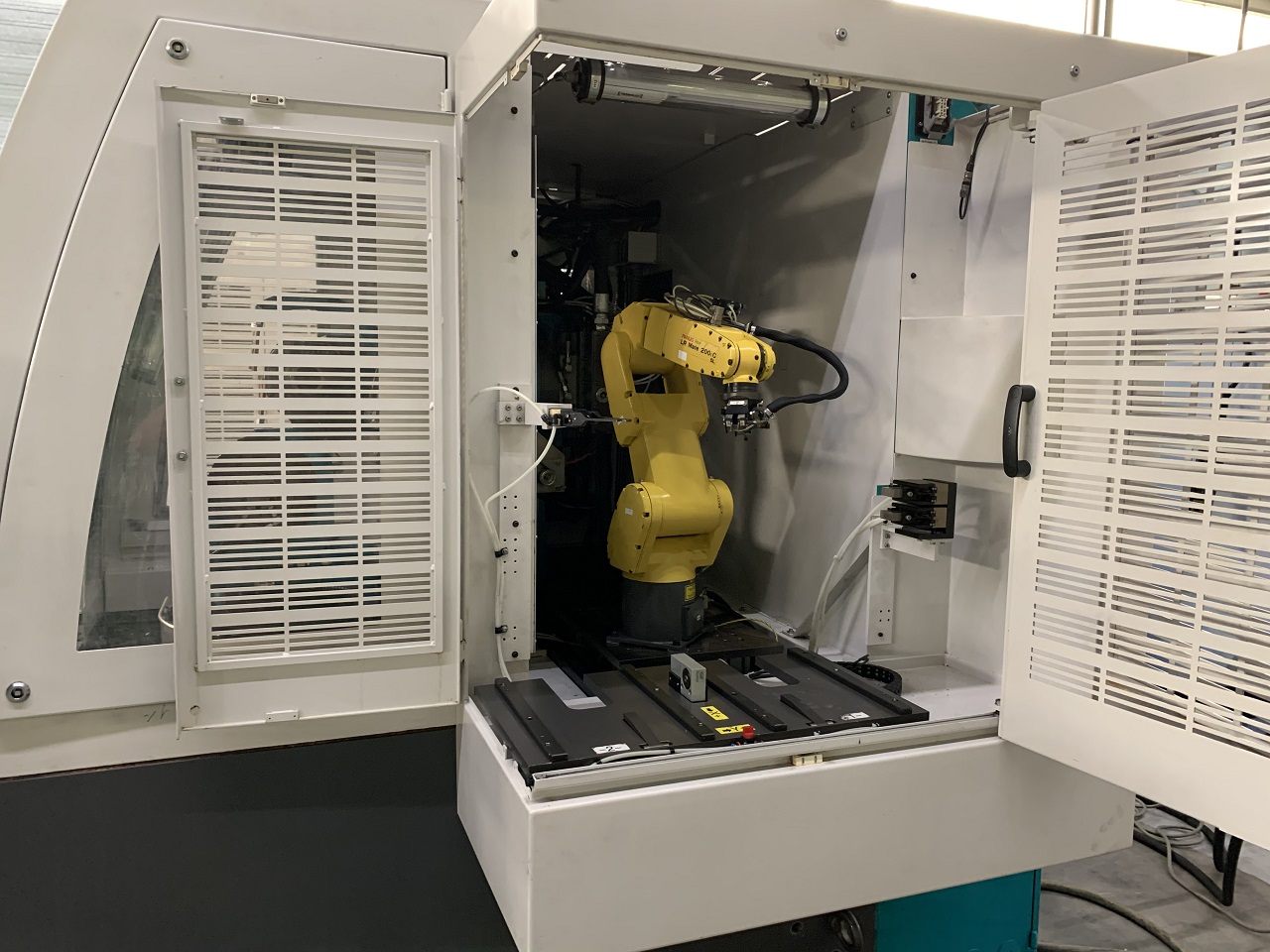

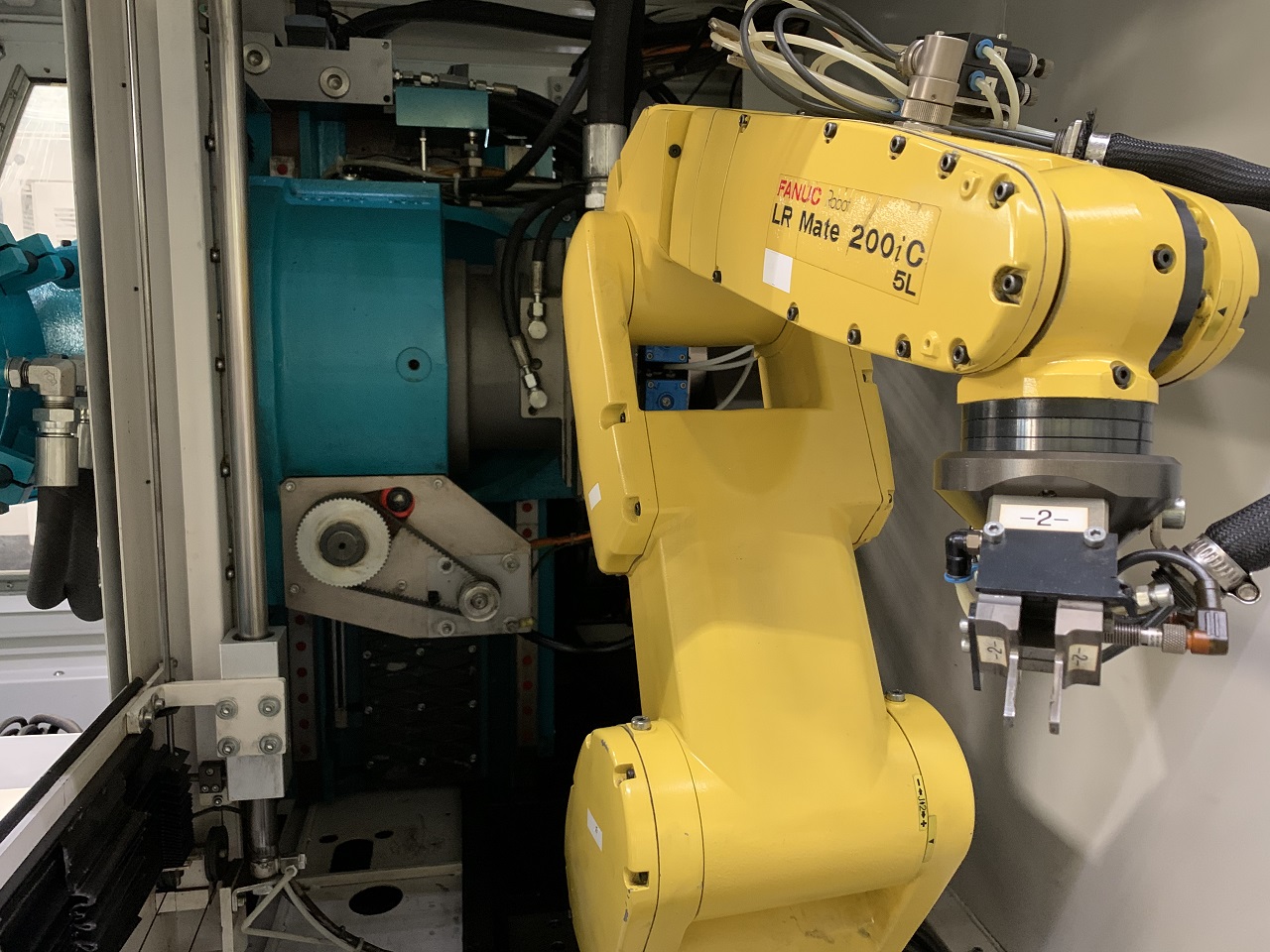

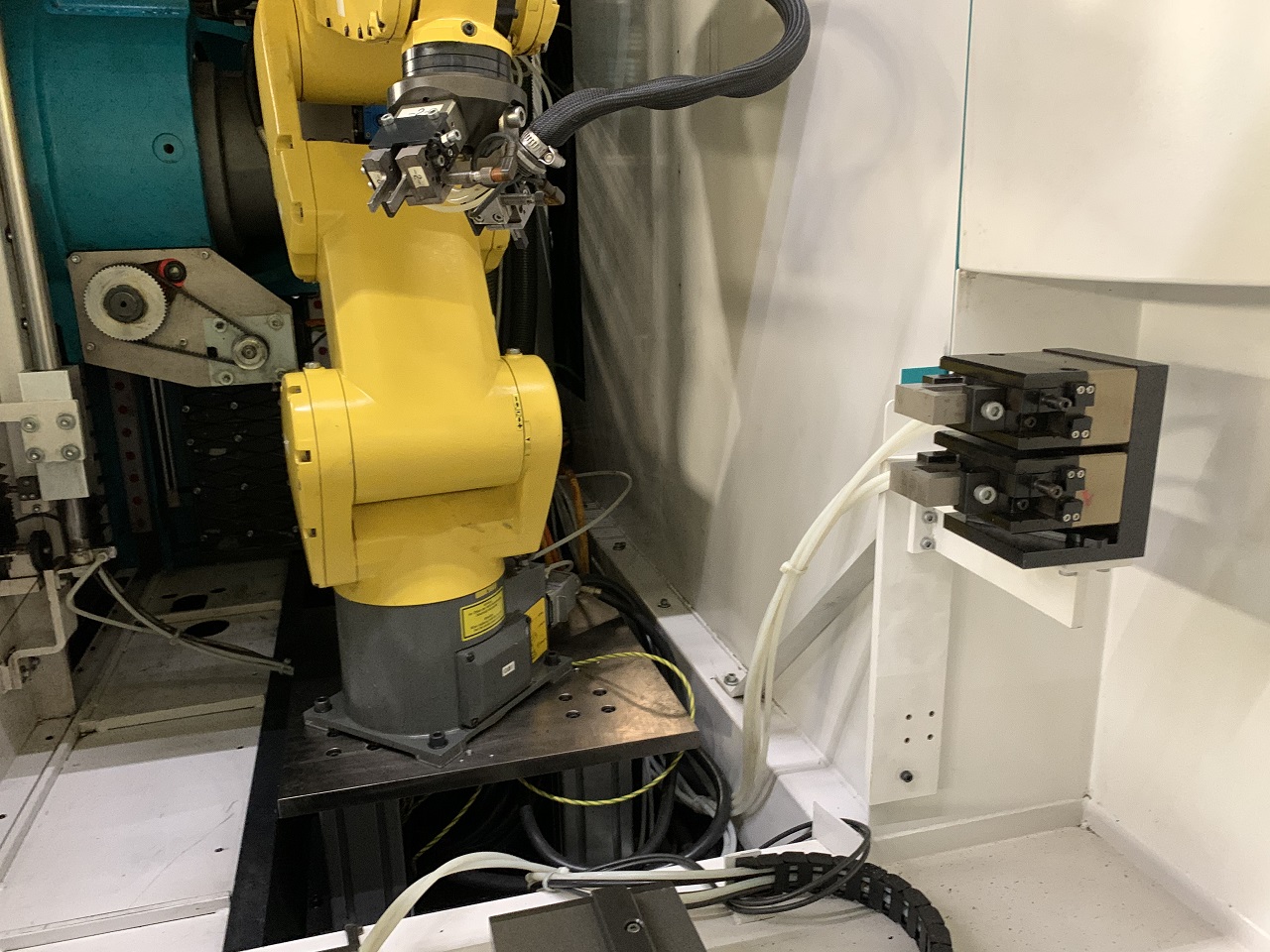

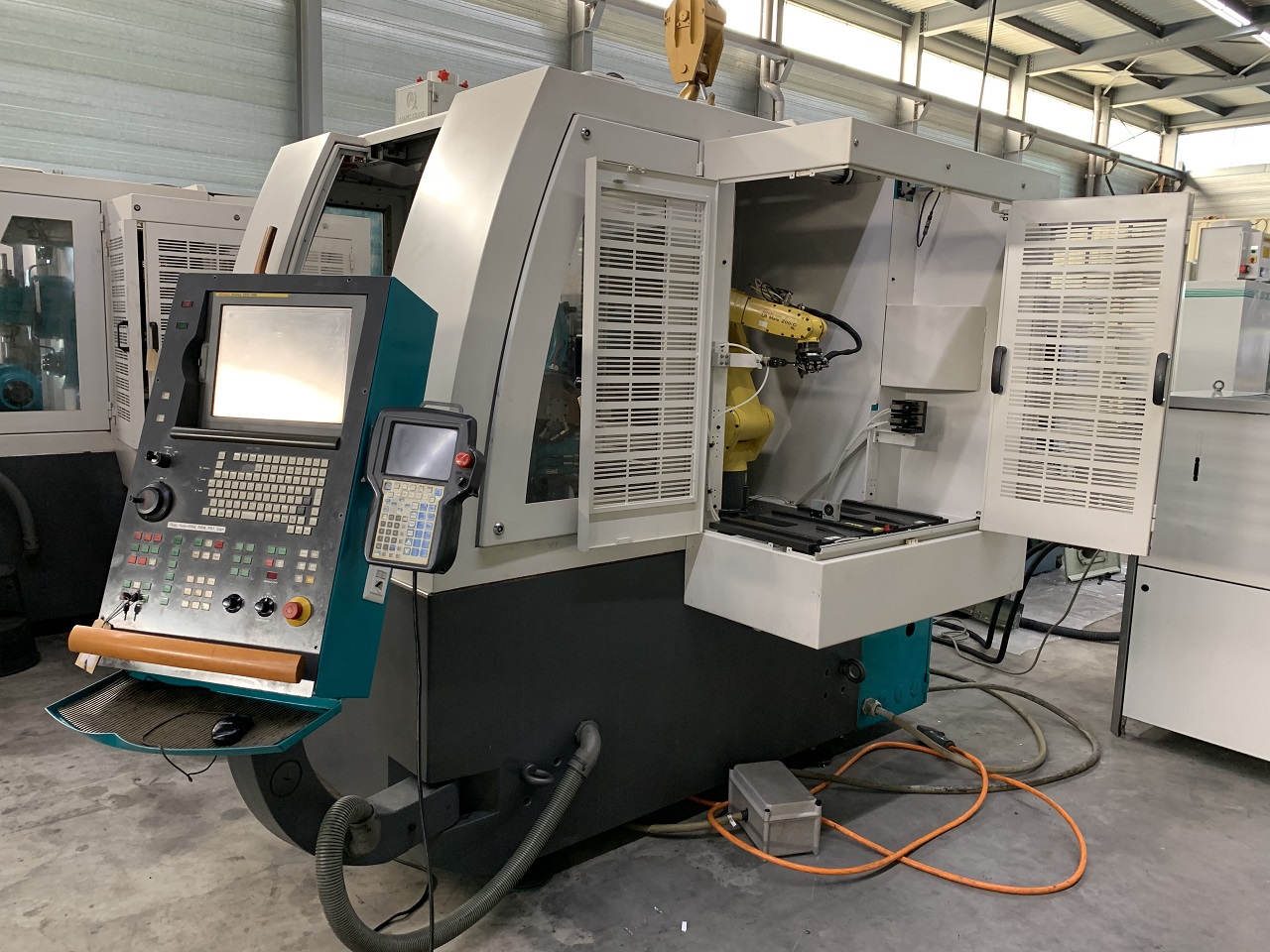

| Robot Fanuc LR Mate 200iC-5L | ||
| Oil chiller |
