我们在欧洲的合作伙伴常年有上千台的各种设备库存
Equipment display
产品详情
| 控制 |
| 容量 |
| X轴 |
| 行程 |
| 快速旅行 |
| 编码器类型 |
| 决议 |
| Y轴 |
| 长途行走 |
| 行程 |
| 编码器类型 |
| 决议 |
| Z轴 |
| 行程 |
| 行程 |
| 编码器类型 |
| 决议 |
| A轴 |
| 行程 |
| 快速旋转 |
| 编码器类型 |
| 决议 |
| B轴 |
| 行程 |
| 快速旋转 |
| 编码器类型 |
| 决议 |
| C轴 |
| 行程 |
| 快速旋转 |
| 编码器类型 |
| 决议 |
| 同步磨削电机 |
| 功率 |
| 峰值功率 |
| 转速 |
| 车轮 |
| 车轮转换器智能转换器 |
| 车轮组容量 |
| 每包车轮数 |
| 附件 |
| 夹紧 |
| 夹紧系统 |
| 夹紧范围 |
| 夹紧式 |
| 机器人装卸 |
| 工具数量 |
| 柄径 |
| 最大总长度 |
| 速度 |
| 夹紧 |
| 工具支架 |
| 柄支撑 |
| 切割部分支架 |
| 总功率 |

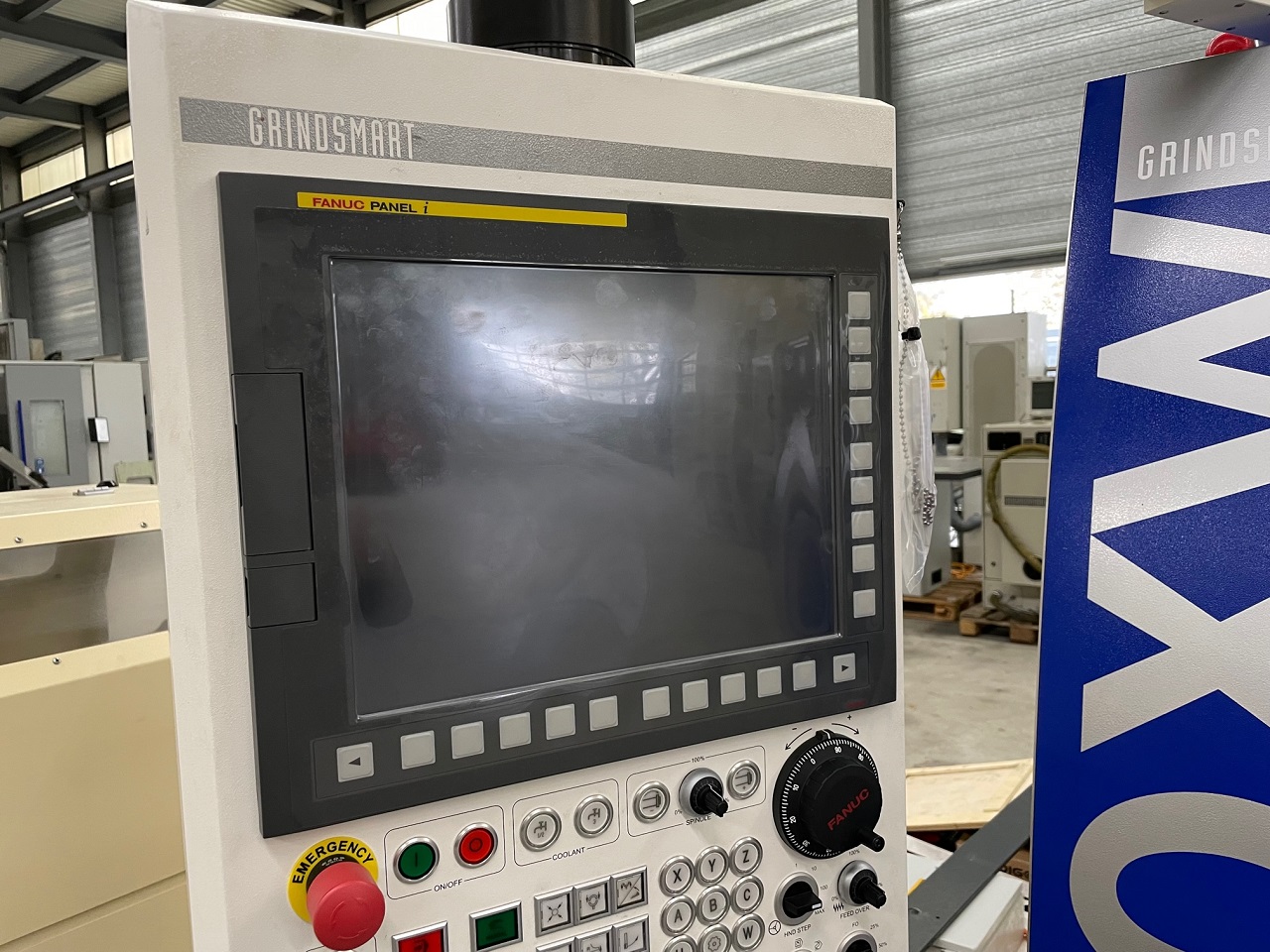

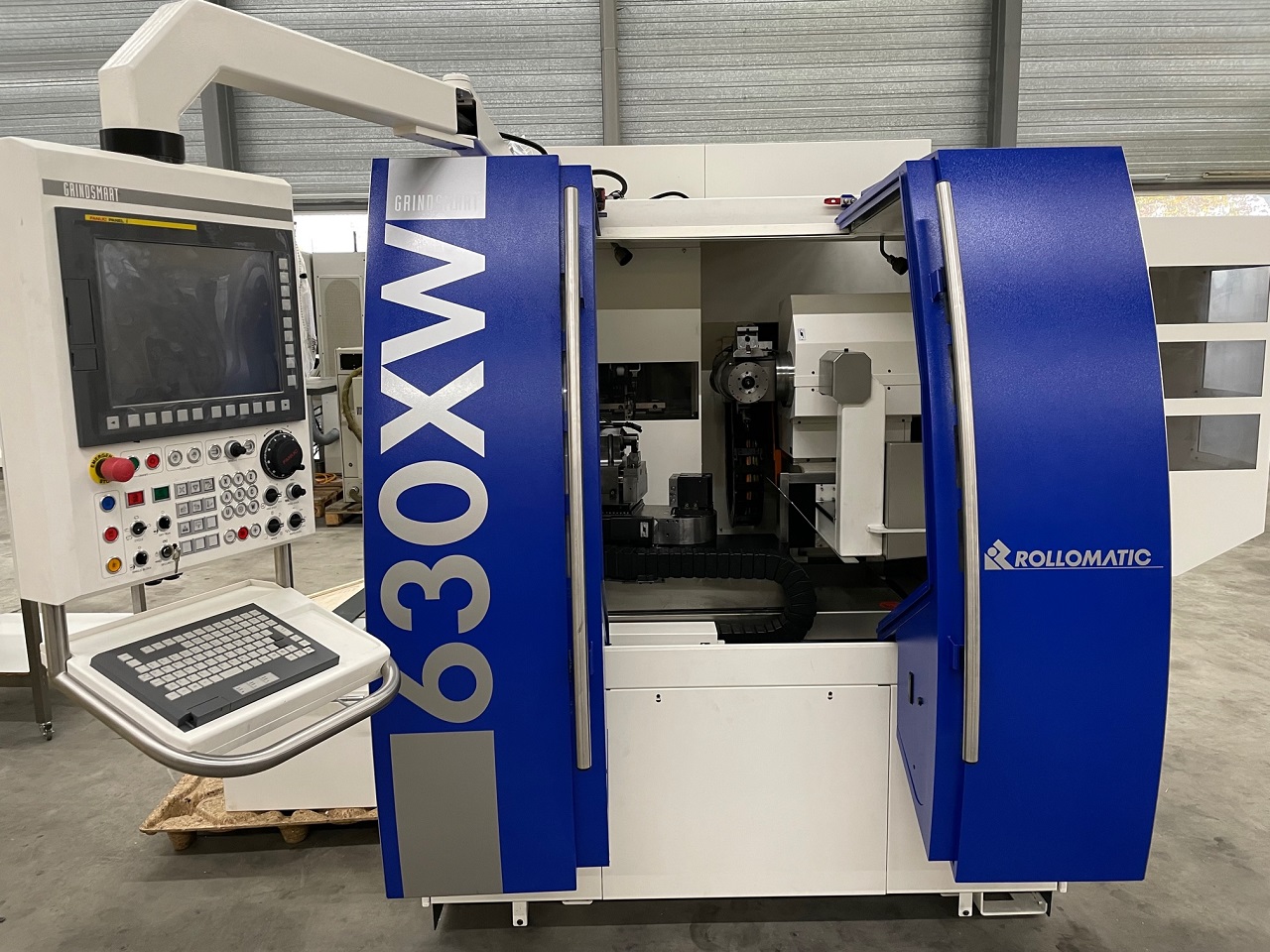

| Control | Fanuc | 30iMB |
| Capacity | Ø 0.1 – 20.0 | mm |
| X-AXIS | ||
| Travel | 300 | mm |
| Fast travel | 12 | m/min |
| Encoder type | absolute linear | scale |
| Resolution | 0.00001 | mm |
| Y-AXIS | ||
| Travel | 220 | mm |
| Fast travel | 12 | m/min |
| Encoder type | absolute linear | scale |
| Resolution | 0.00001 | mm |
| Z-AXIS | ||
| Travel | 180 | mm |
| Fast travel | 12 | m/min |
| Encoder type | absolute linear | scale |
| Resolution | 0.00001 | mm |
| A-AXIS | ||
| Travel | - 50° to 90° | (140°) |
| Fast rotation | 6480°/min | . |
| Encoder type | rotary | measuring |
| Resolution | 0.0000125 | ° |
| B-AXIS | ||
| Travel | - 75° to 135° | (210°) |
| Direct drive | ||
| Fast rotation | 8640°/min | . |
| Encoder type | rotary measuring | |
| Resolution | 0.00005 | ° |
| C-AXIS | ||
| Travel | tool | rotation |
| Fast rotation | 300 / 1000 | min-1 |
| Encoder type | rotary : on motor | AC |
| Resolution | 0.0001 | |
| GRINDING MOTOR SYNCHRONOUS | ||
| Power | 11 kW | (15HP) |
| Direct | drive | |
| Peak power | 14 kW | (19HP) |
| Rotation speed | 500 – 12000 | min-1 |
| Wheels | Ø 200 | mm |

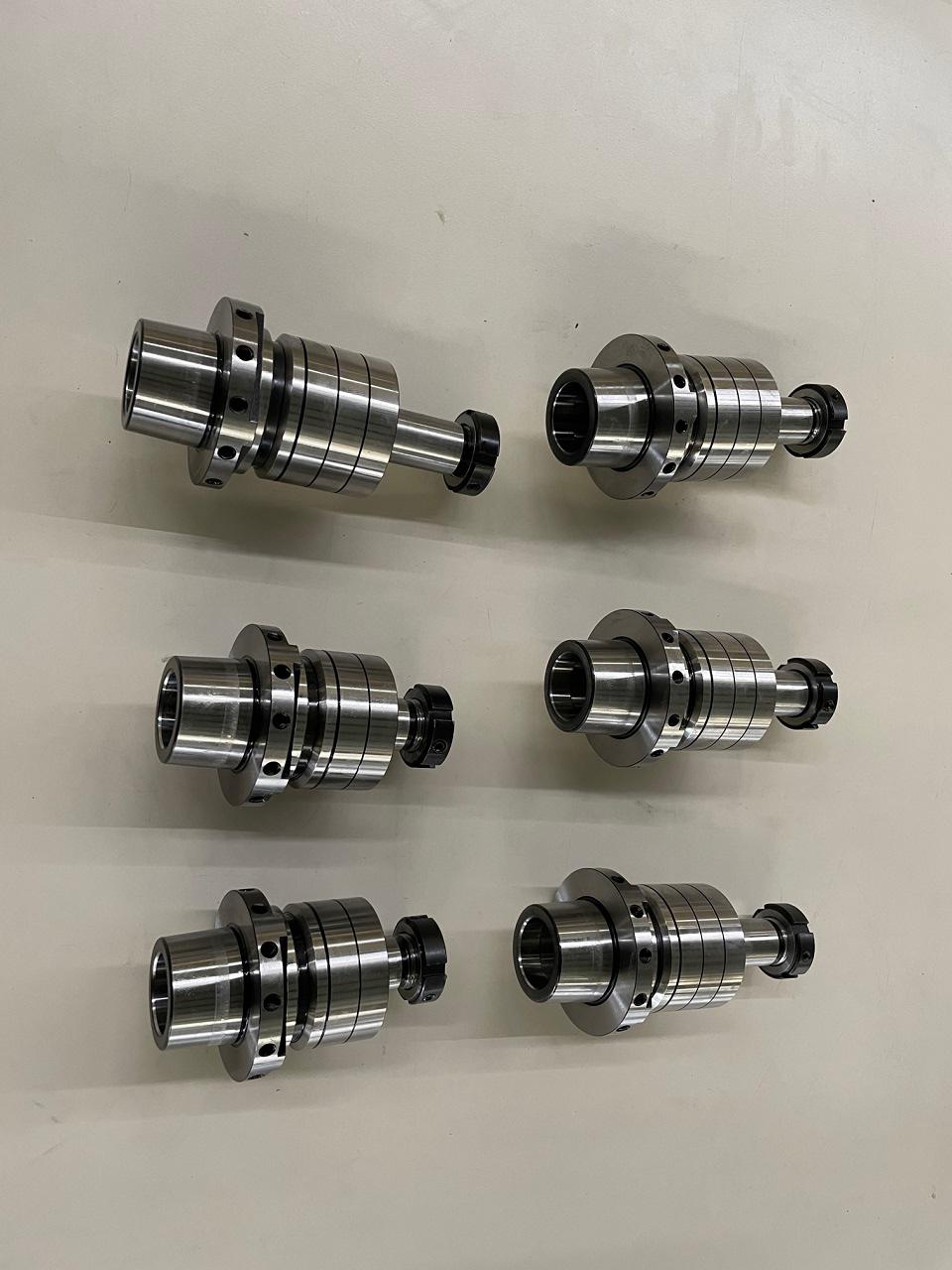

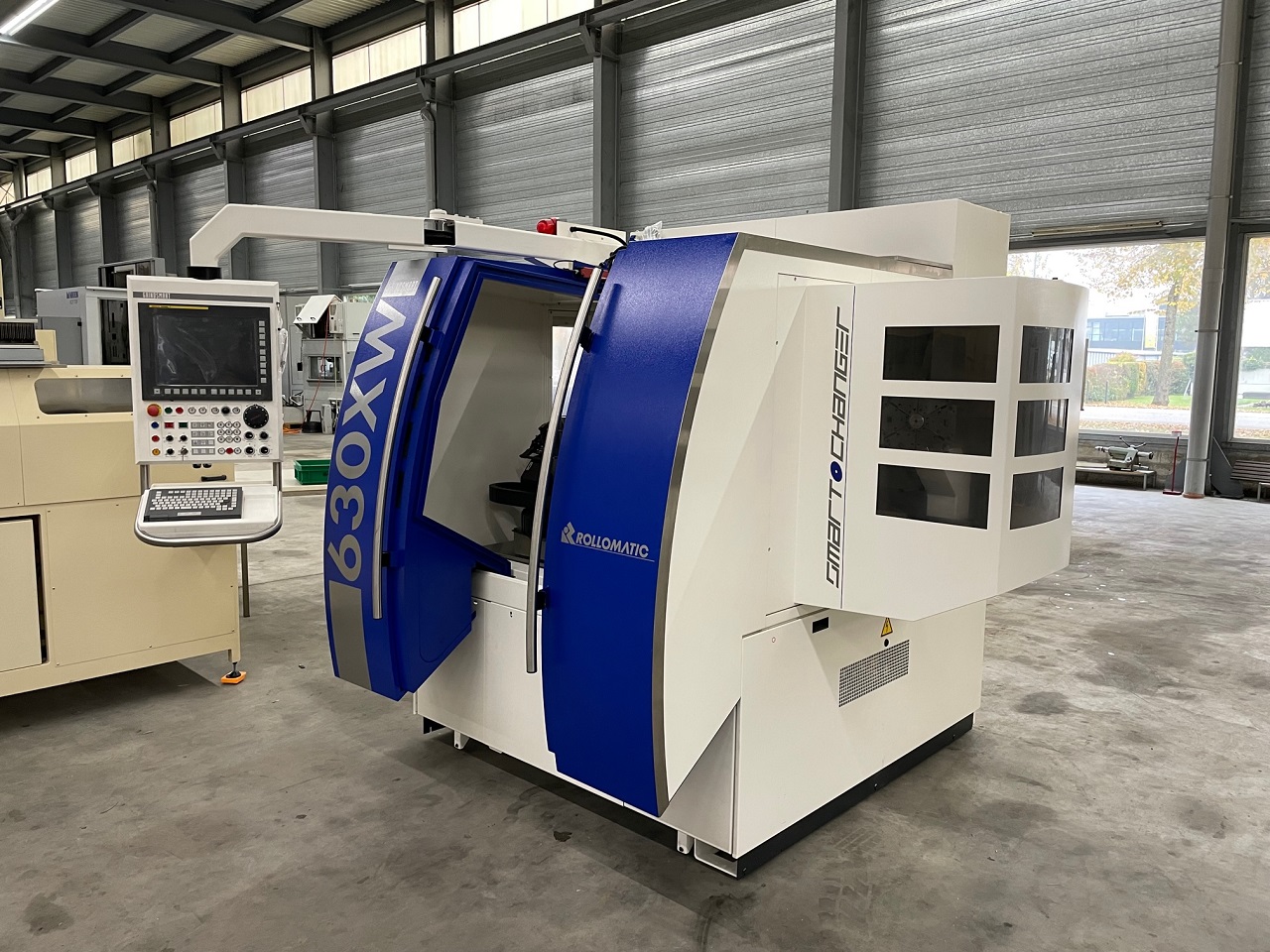

| WHEEL CHANGER SMARTCHANGER | ||
| Wheel pack capacity | 6 | |
| Number of wheels per pack | 4 | |
| Attachment | HSK50 | E |

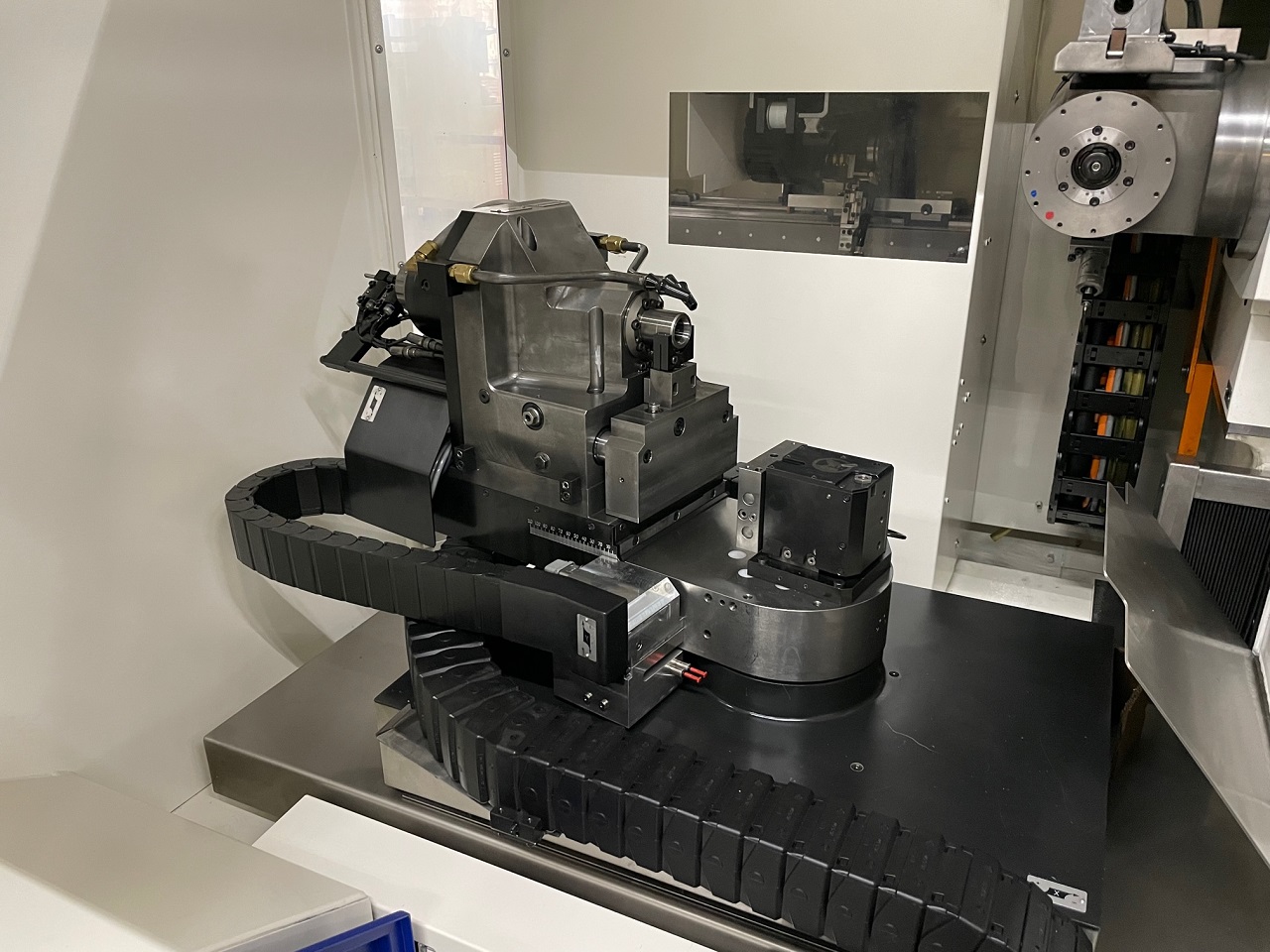

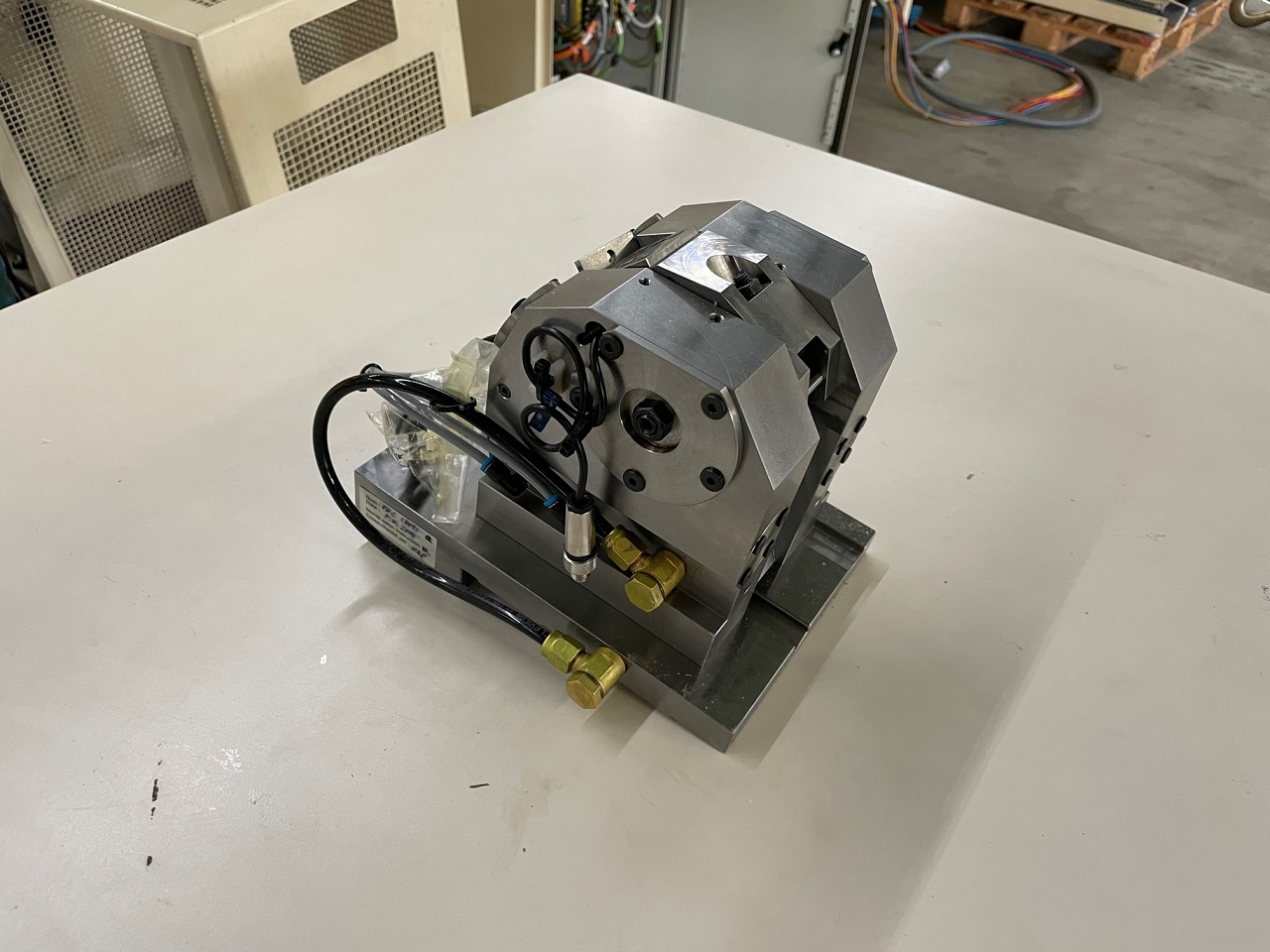

| CLAMPING | ||

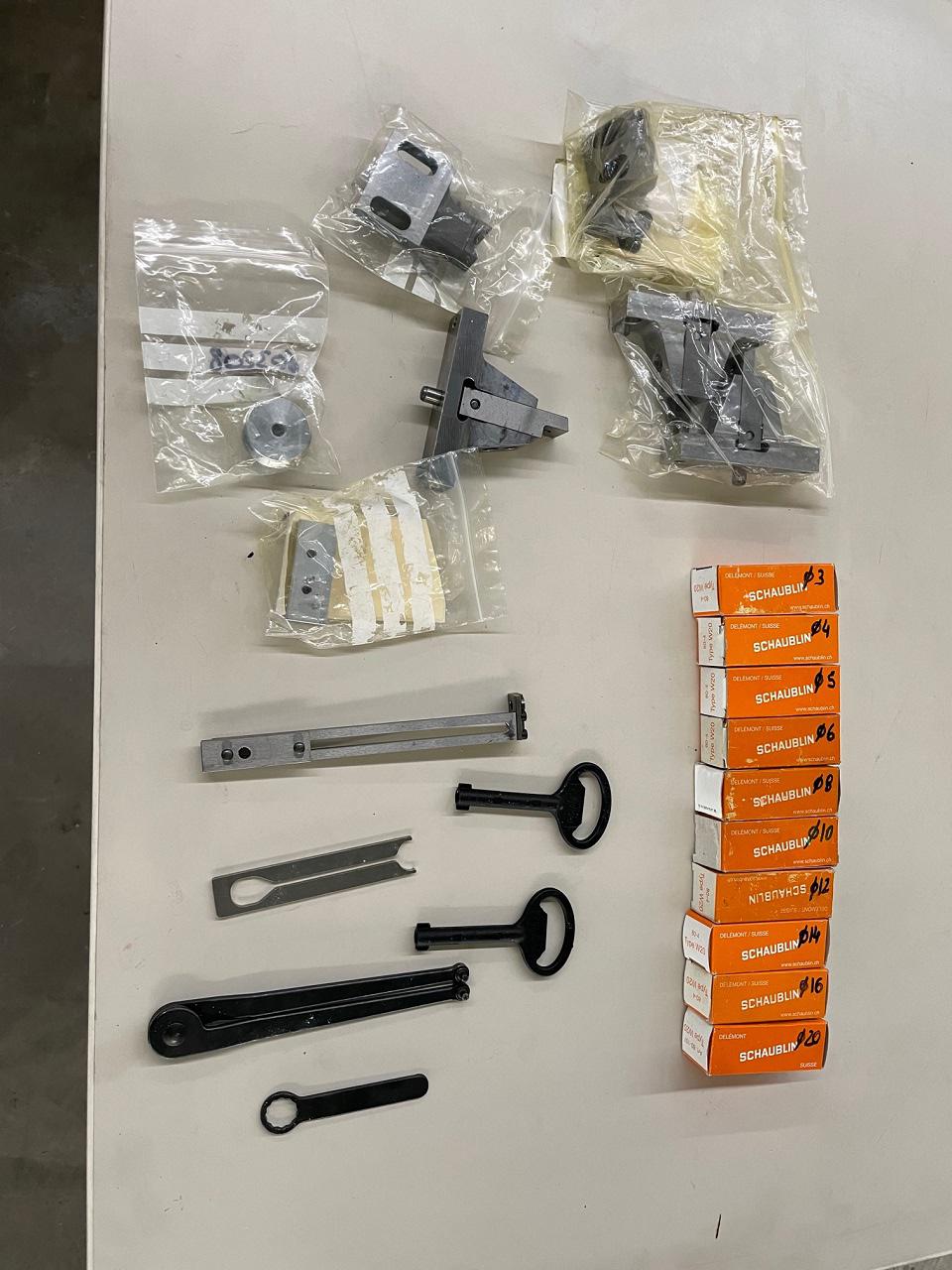

| Clamping system | adapters Schaublin and | Nann |
| Clamping range | Ø 0.5 à 20.0 | mm |
| Clamping type | mech. Spring | clamping |

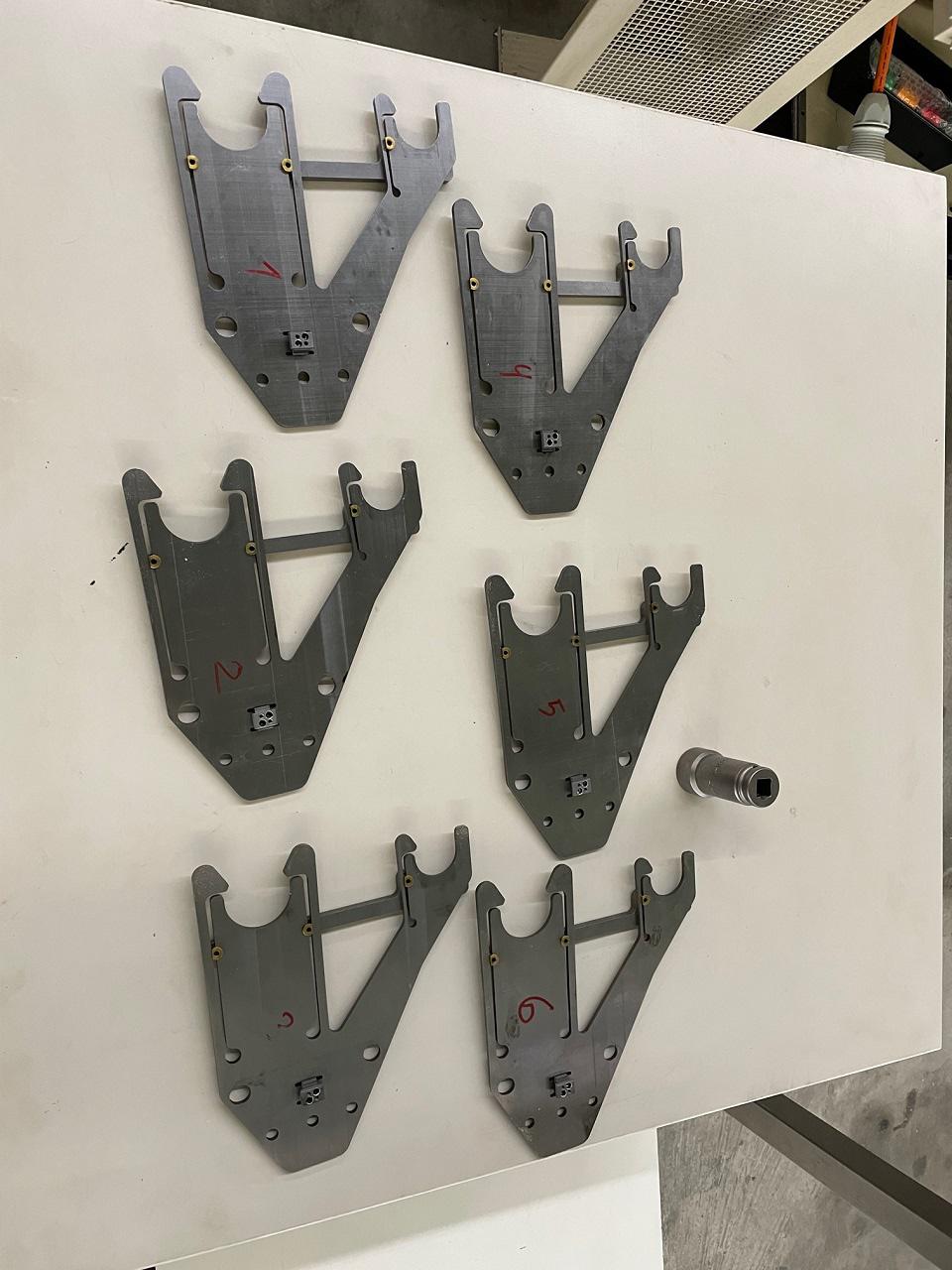

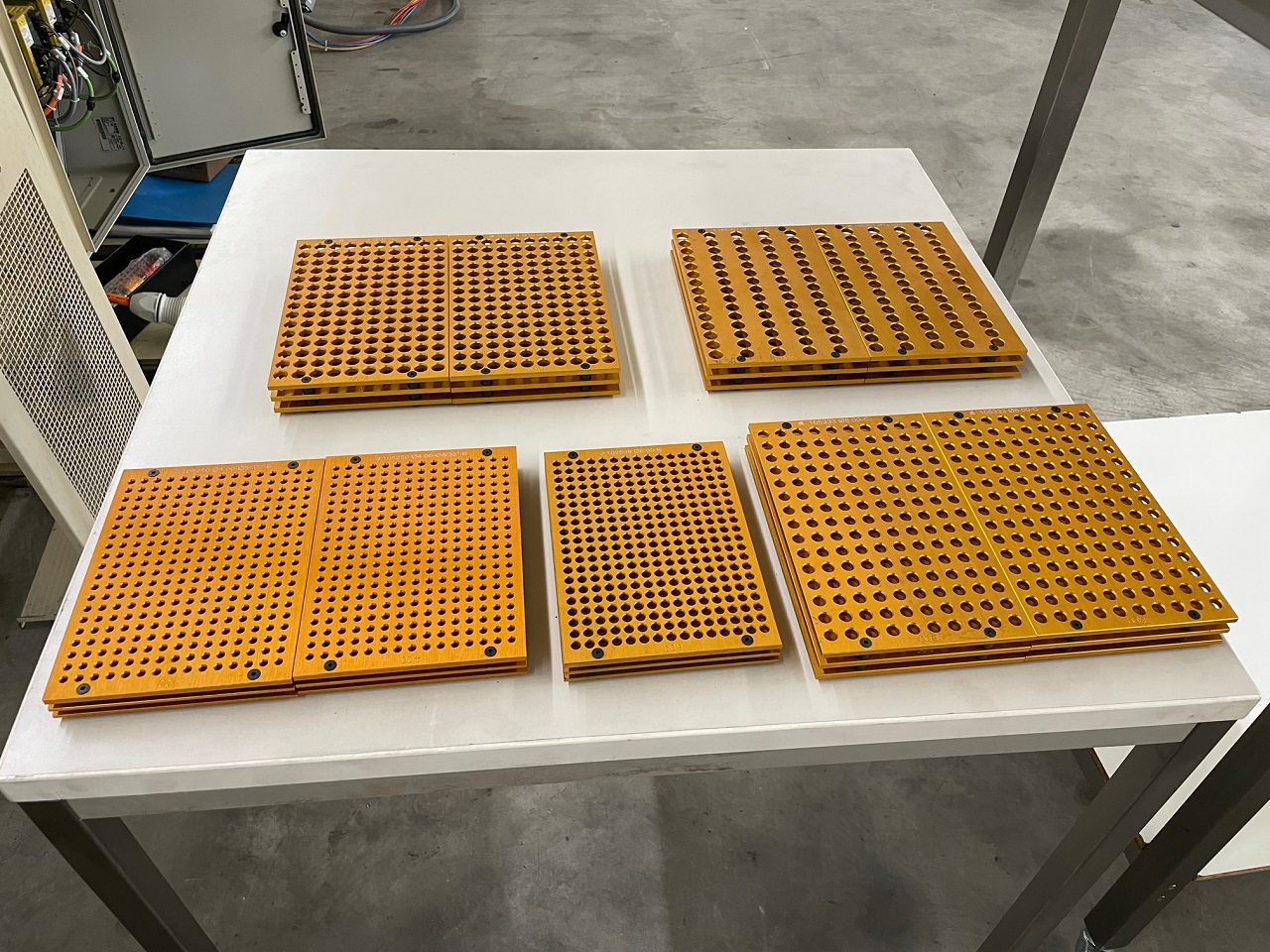

| ROBOT LOAD & UNLOAD | ||
| Number of tools | up to 1360 (6 | cassettes) |
| Shank diameter | Ø 1.0 – 20.0 | mm. |
| Max. length overall | 300 | mm |
| Speed | 65m/mi | n |
| Clamping | hydrauli | c |

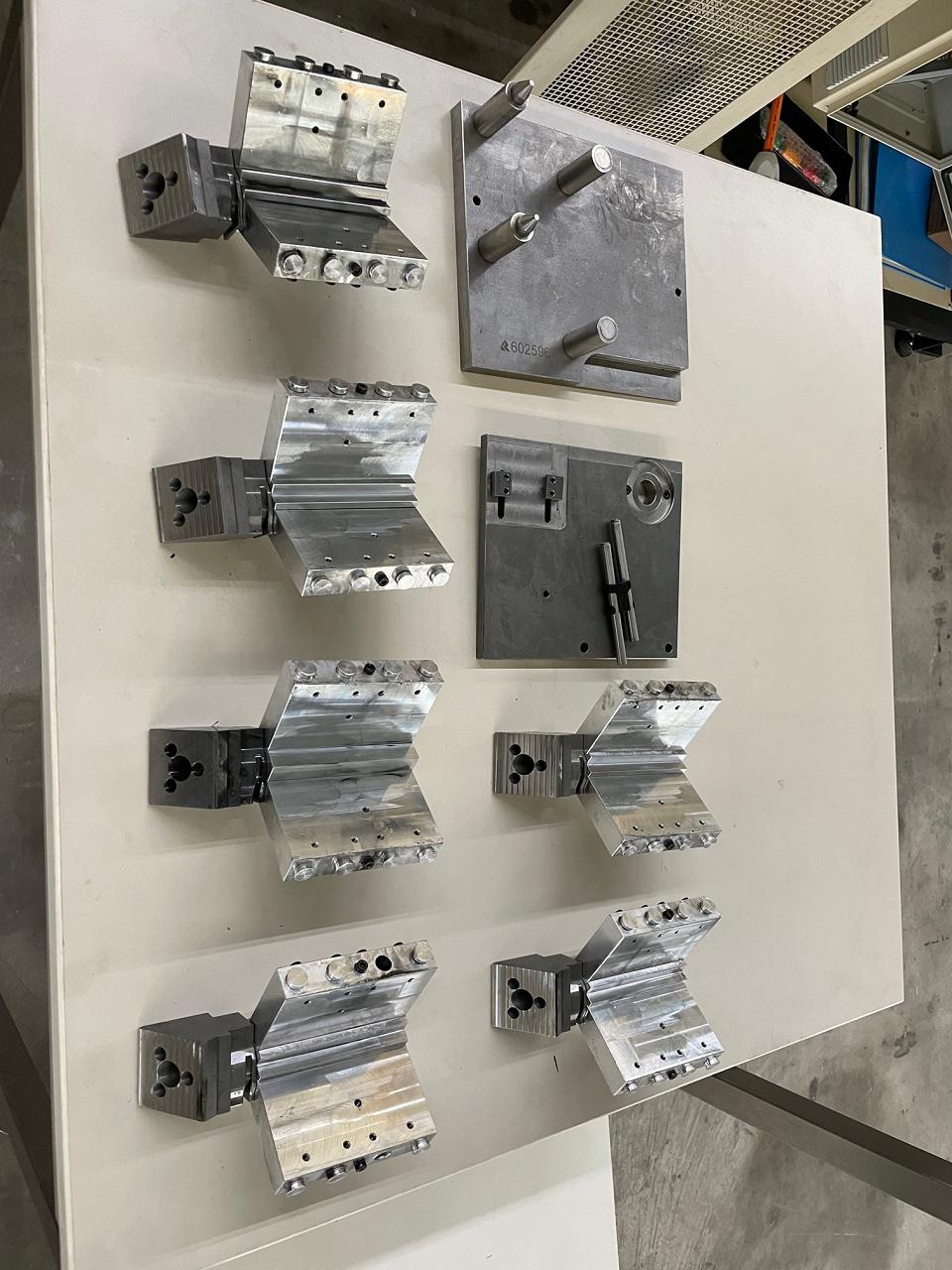

| TOOL SUPPORTS | ||
| Shank support | « V » clamping, | mechanical |
| Cutting portion support | « V » or half-moon, | hydraulic |
| Total power | max 18 | kW |
