产品详情
| 磨头： |
| 主轴功率 |
| 主轴转速 |
| 专用设备：电机连续调速 |
| 磨床主轴 |
| Spindel倾斜（A轴） |
| 摆式主轴的设定精度 |
| 高度行程（Y轴） |
| 行程进给（X轴） |
| 振荡范围，振荡时连续可调 |
| 振荡频率 |
| 专用设备：频率连续调节 |
| 工件主轴箱： |
| 半径调整（Z轴） |
| 调整Z轴的精度 |
| 稳定压力 |
| 专用设备：变压力 |
| 测量工作位置的位置位移 |
| 工作面交叉运输 |
| 长途行走 |
| 最大角间隙（B轴） |
| 润滑 |
| 电气安装： |
| 控制柜 |
| 连接电压 |
| 吸收功率 |
| 各种配件： |
| 1个交叉工作台KS15/01–155x205毫米行程60毫米 |
| 1磨削主轴转速连续调节FR15–2,2kW–1000-8000分钟 |
| 1个可调振荡器或15 |
| 1研磨压力调节器AV15 0-400N |
| 1个投影仪安装单元-包括照明模块 |
| 1台投影仪M231-OP1型250毫米屏幕 |
| 1个带控制装置RS15的数字显示单元 |
| 1个车轮校正装置AD15 |
| 1个带磁脚的DL15冷光源LED照明 |
| 1个自动旋转装置ASV15 |
| 1在15点停止深度研磨 |
| 1个用于球面磨削8H-25R的可调装置，带牵引杆的夹头W25的主轴 |
| 4轮缘 |
| 1个带刀架8C、工件架8B-W20的快速夹紧装置8A |
| 1通用工件台3CV |
| 1个快速夹紧装置BAU-L |
| 1.副作用S15 |
| Grinding head : | ||
| Spindle power | 2,2 | kW |
| Spindle speed | at 50 per., 3400 | min-1 |
| at 60 per., 4000 | min-1 | |
| special equipment : continuous speed adjusting of | ||
| grinding spindle | 1000-8000 | min-1 |
| Spindel tilting (A-axis) | -10° à | +27° |
| Setting precision of tilting spindle | 1 | min |
| Height travel (Y-axis) | 130 | mm |
| Travel feed (X-axis) | 490 | mm |
| Oscillation range, continuously adjustable while oscillating | 0-70 | mm |
| Oscillation frequency | 30/60 | min-1 |
| Special equipment : frequency continuous adjusting | 0-68 | min-1 |
| Workpiece headstock : | ||
| Radius adjusting (Z-axis) | 0,01 - 120 | mm |
| Adjusting precision Z-axis | 0,01 | mm |
| Steady pressure force | 200 | N |
| Special equipment : variable pressure force | 0 – 400 | N |
| Measure position displacement in working position | 120 | mm |
| Cross carriage, work surface | 155x205 | mm |
| Travel | 60 mm | each |
| Max. angular clearance (B-axis) | 260 | ° |
| Lubrication | central, | automatic |
| Electrical Installation : | ||
| Control cabinet | ||
| Connection voltage | 3x 230V 50/60 | per.-230V |
| 3x 400V 50/60 | per.-230V | |
| 3x 440V 50/60 | per.-110V | |
| 3x 220/230V 50/60 | per.-110V | |
| 3x 480V 50/60 | per.-230V | |
| Absorbed power | abt. 5 | kVA |
| Various accessories: | ||

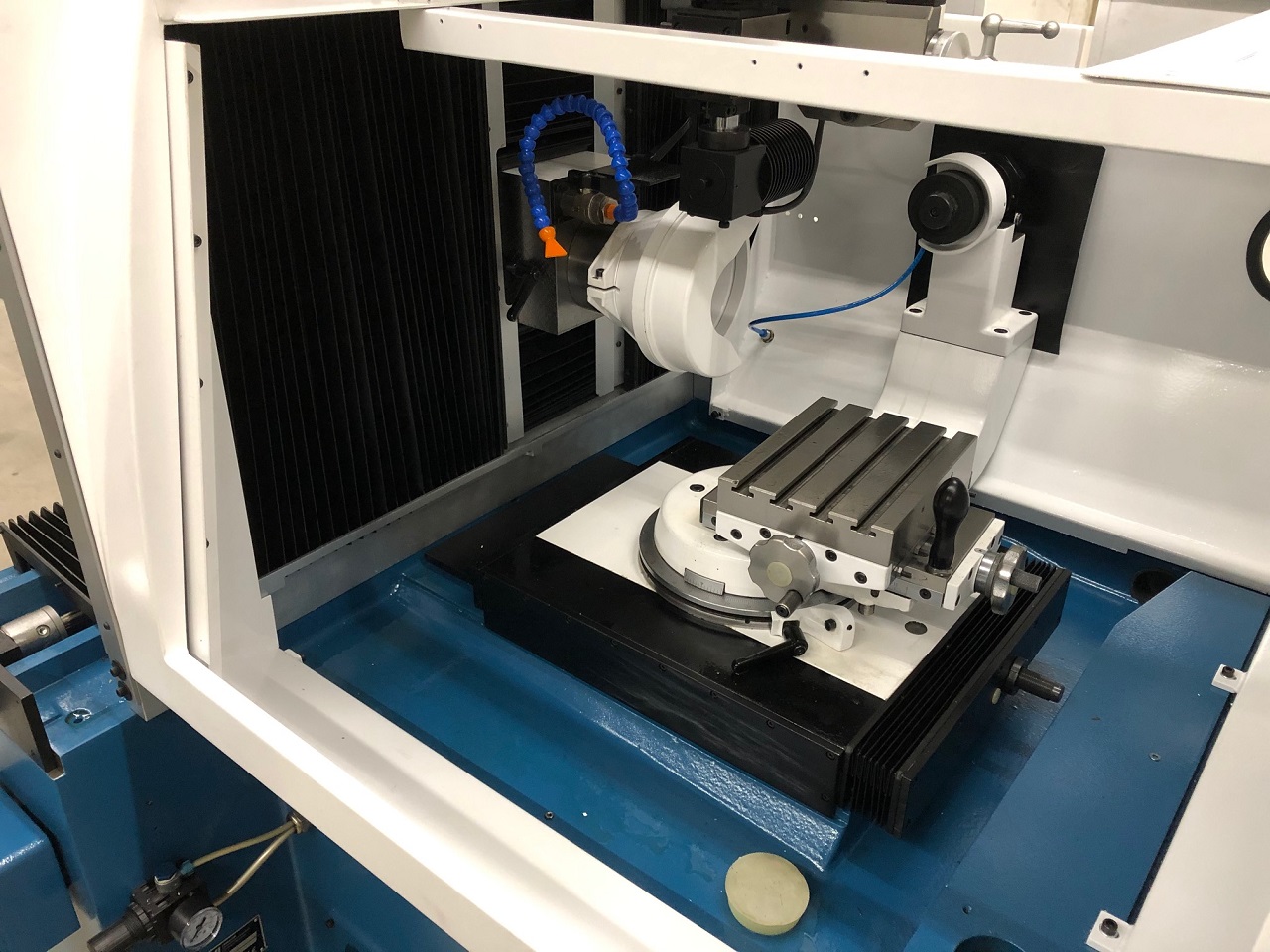

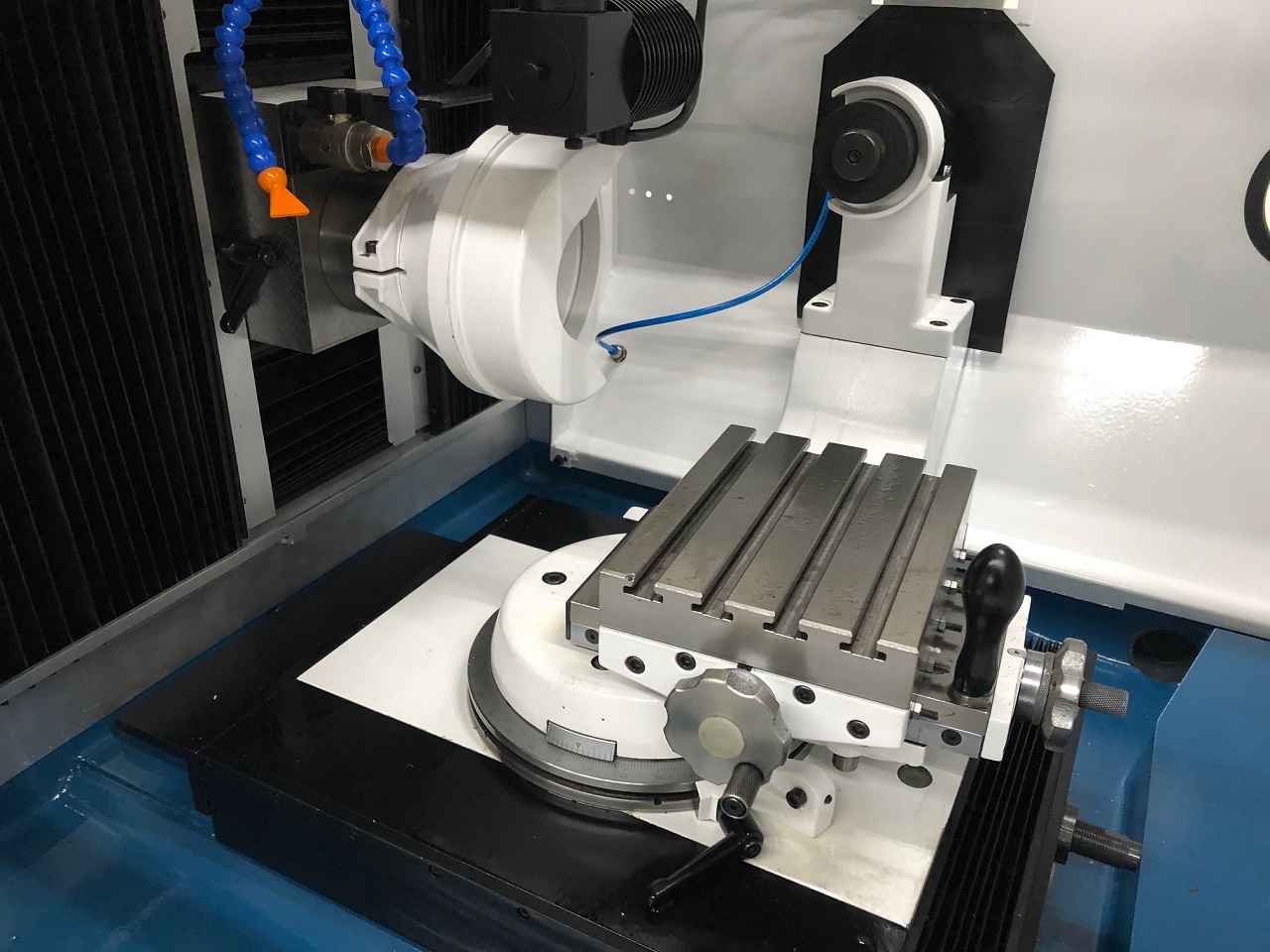

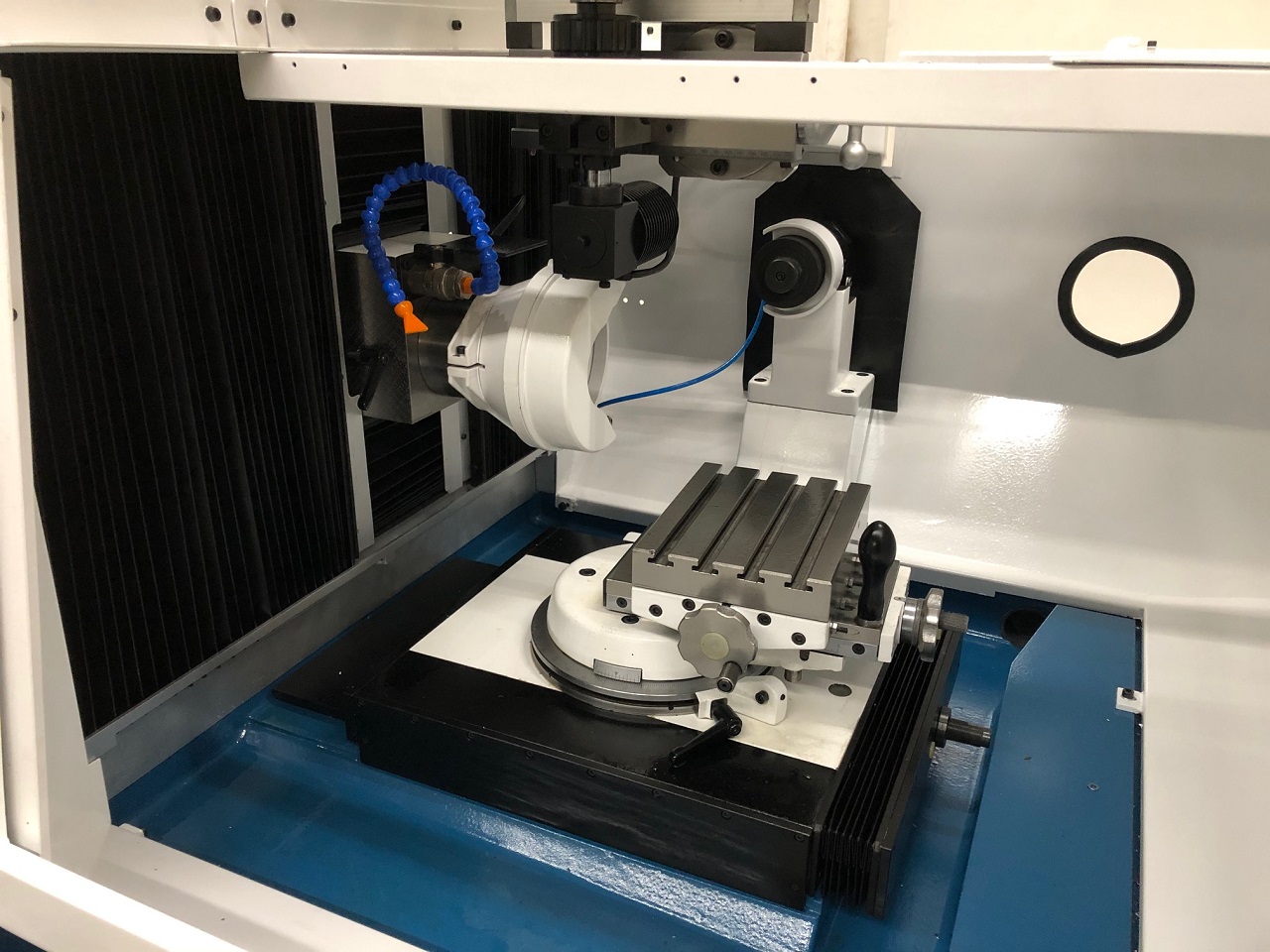

| 1 cross table KS15/01 – 155x205 mm travel 60 mm | ||
| 1 grinding spindle speed continuous adjusting FR15 – 2,2kW – 1000-8000 min | ||
| 1 adjustable oscillator OR15 | ||
| 1 grinding pressure regulator AV15 0- 400N | ||
| 1 projector mounting unit – including lighting module | ||
| 1 projector Aubert type M231-OP1 screen 250 mm | ||

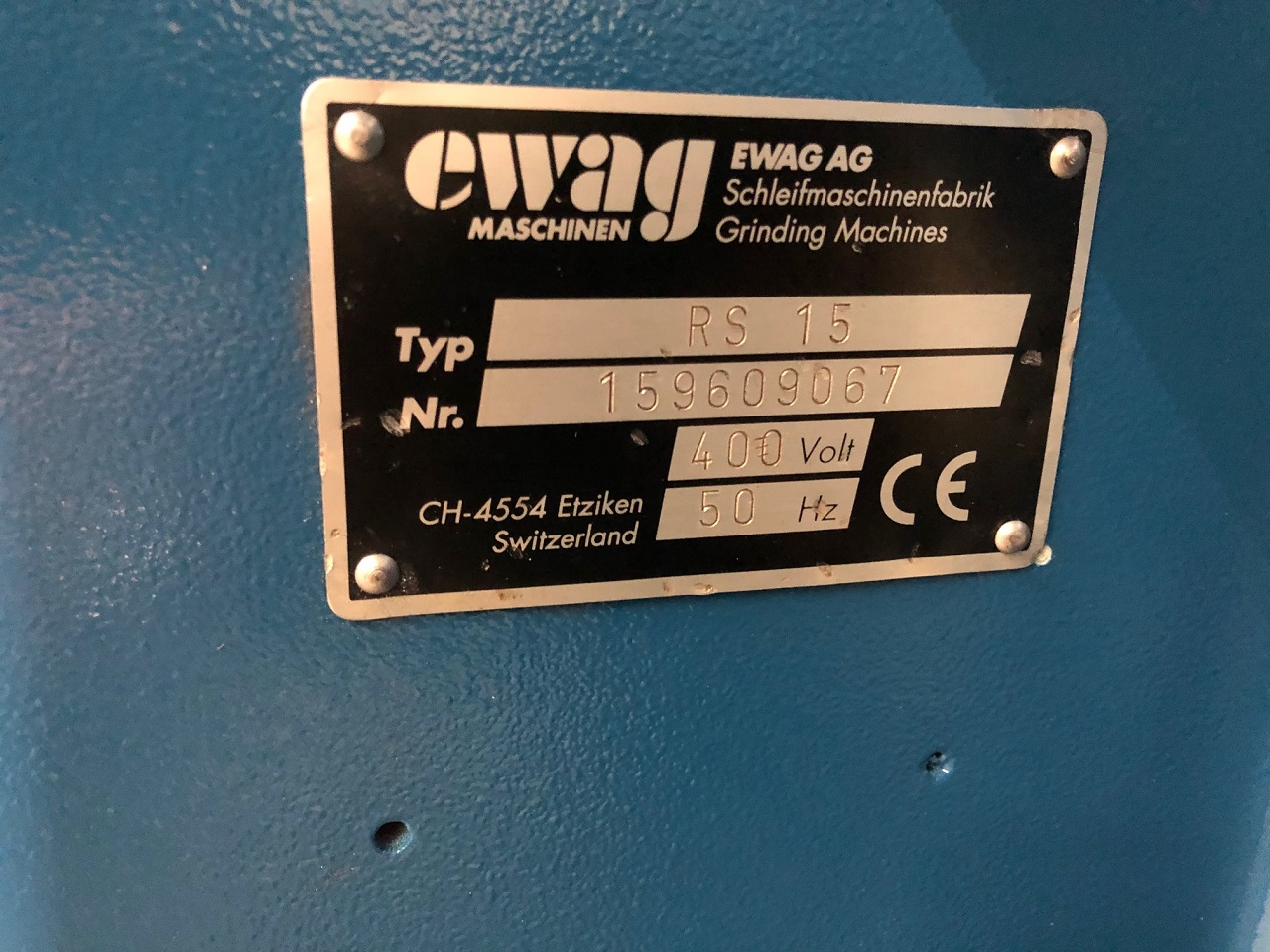

| 1 numeric display unit with control RS15 Cerametal | ||
| 1 wheels trueing device AD15 | ||
| 1 LED lighting by transmission DL15 cold light source with magnetic foot | ||
| 1 automatic pivoting device ASV15 | ||
| 1 stop for depth grinding AT15 | ||
| 1 adjustable apparatus for spheric grinding 8H-25R, spindle for collet W25 with drawbar | ||
| 4 wheel-flanges | ||
| 1 quick clamping device 8A with tool-holder 8C, workpiece-holder 8B-W20 | ||
| 1 universal workpiece table 3CV | ||
| 1 quick clamping device BAU-L | ||
| 1 vice S15 |
