产品详情
| 技术细节 |

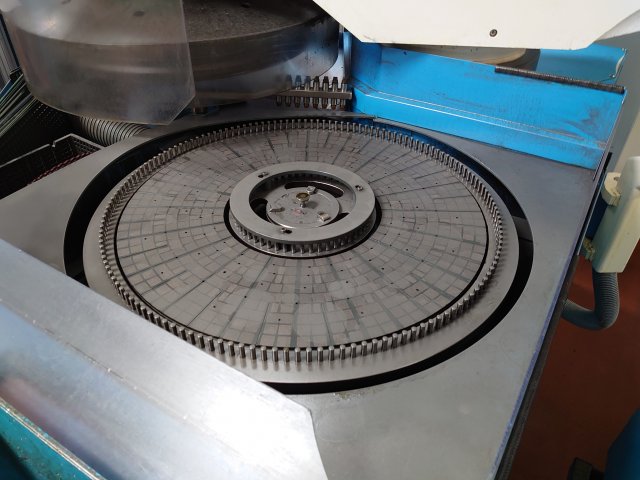

| 珩磨板 |
| -外径：720[mm] |
| -厚度：50[mm] |
| -线圈宽度：200[mm] |
| -最大球磨损：约2.5[mm] |
| -板之间的最大距离：120[mm] |
| -重量：约125[kg] |
| 渐开线工艺装置 |
| -类型：7 TF 24/6 |
| 气动系统 |
| -上珩磨板可调载荷：最大1000 daN。 |
| -压缩空气：5[bar] |
| -空气消耗：60 L/循环 |
| 电气设备 |
| -工作张力：400[V] |
| -频率：50[Hz] |
| -控制张力：230/24 V cc |
| -总功率：70[kVA] |
| 主驱动-高/低 |
| -驱动电机：伺服电机 |
| TECHNICAL DETAILS |
| Honing plates |
| - external diameter : 720 [mm] |
| - thickness : 50 [mm] |
| - coil width : 200 [mm] |
| - maxi balls wearness : approx. 2.5 [mm] |
| - maxi distance between the plates : 120 [mm] |
| - weight : approx. 125 [kg] |
| Involute process device |
| - type : 7 TF 24/6 |
| Pneumatic system |
| - upper honing plate adjustable load : 1000 daN max. |
| - compressed air : 5 [bar] |
| - air consumption : 60 L/cycle |
| Electric equipment |
| - service tension : 400 [V] |
| - frequency : 50 [Hz] |
| - control tension : 230/24 V cc |
| - total power : 70 [kVA] |
| Main driving – high/low |
| - driving motor : Servomotor |
