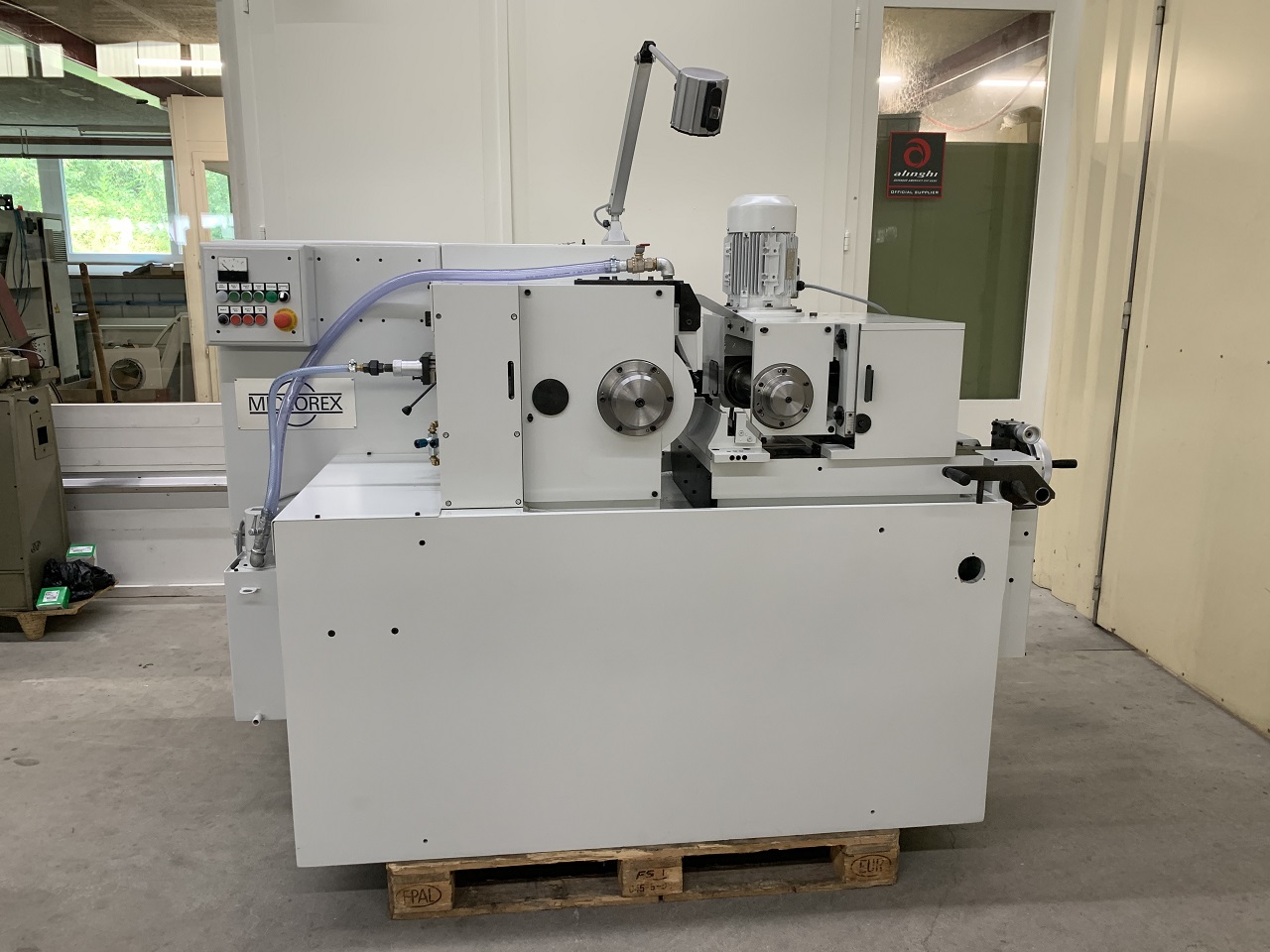

Equipment display
产品详情
| 直径容量 |
| 最大进料磨削长度 |
| 最大通料研磨长度 |
| （带普通型导轨） |
| 砂轮： |
| 直径 |
| 最大宽度 |
| 口径 |
| 驱动轮： |
| 直径 |
| 最大宽度 |
| 口径 |
| 主驱动电机 |
| 驱动轮电机 |
| 驱动轮转速 |
| 标准配件： |
| 1带砂轮的法兰 |
| 1带驱动轮的法兰 |
| 1工件支撑桥 |
| 1套用于工件支撑的垫片 |
| 砂轮和驱动轮的液压修整和校正装置 |
| 驱动轮变速驱动 |
| -3X380V、50Hz的电气设备 |
| -主驱动电机，11千瓦 |
| 主驱动电机用电流表 |
| 起动钥匙和操作手册 |
Diameter capacity | 80 | mm |

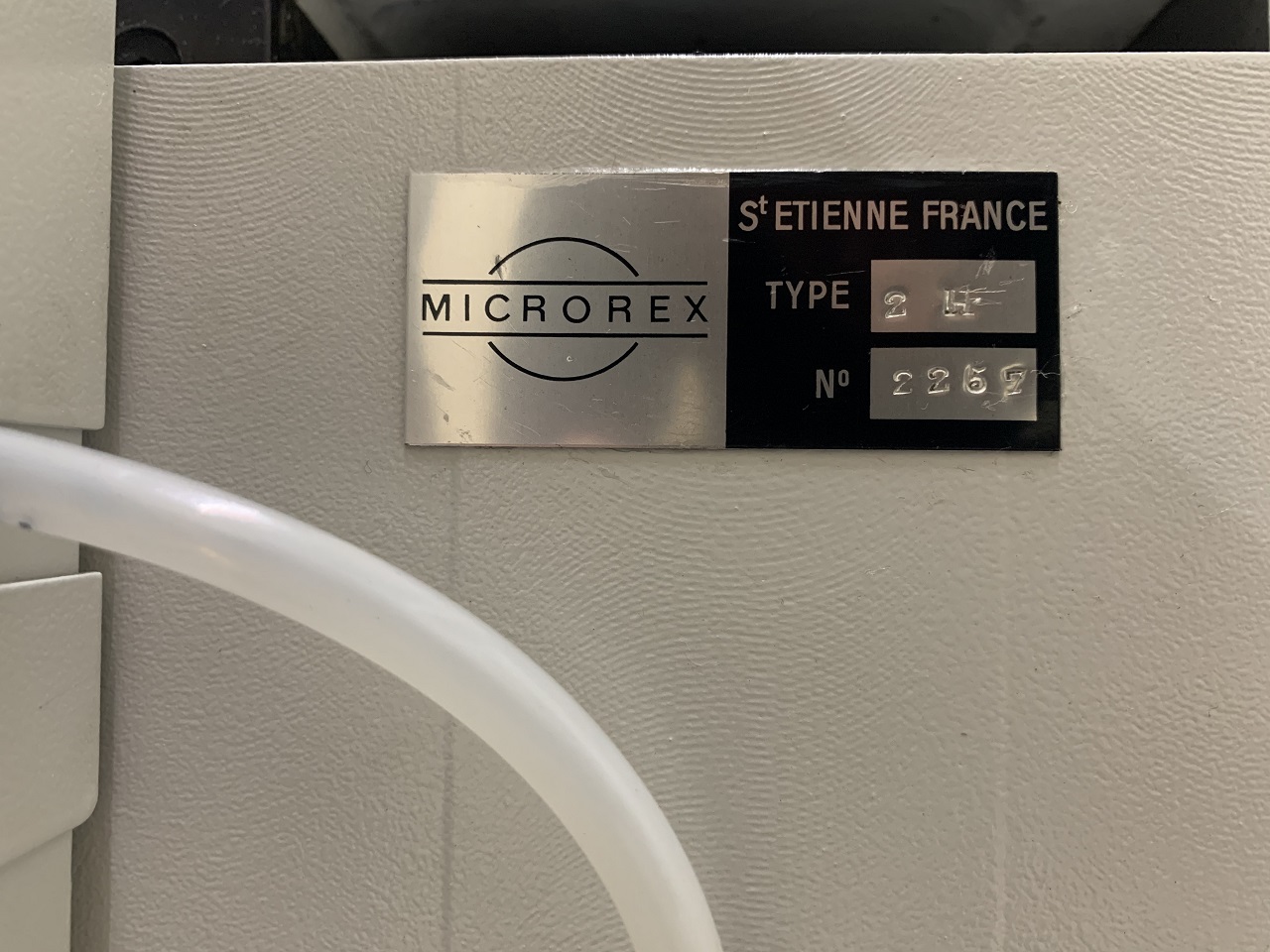

Type 2HA : 120 | mm | |
Maximum infeed grinding length | 200 | mm |
Maximum throughfeed grinding length | ||
(with normal-type guides) | 300 | mm |

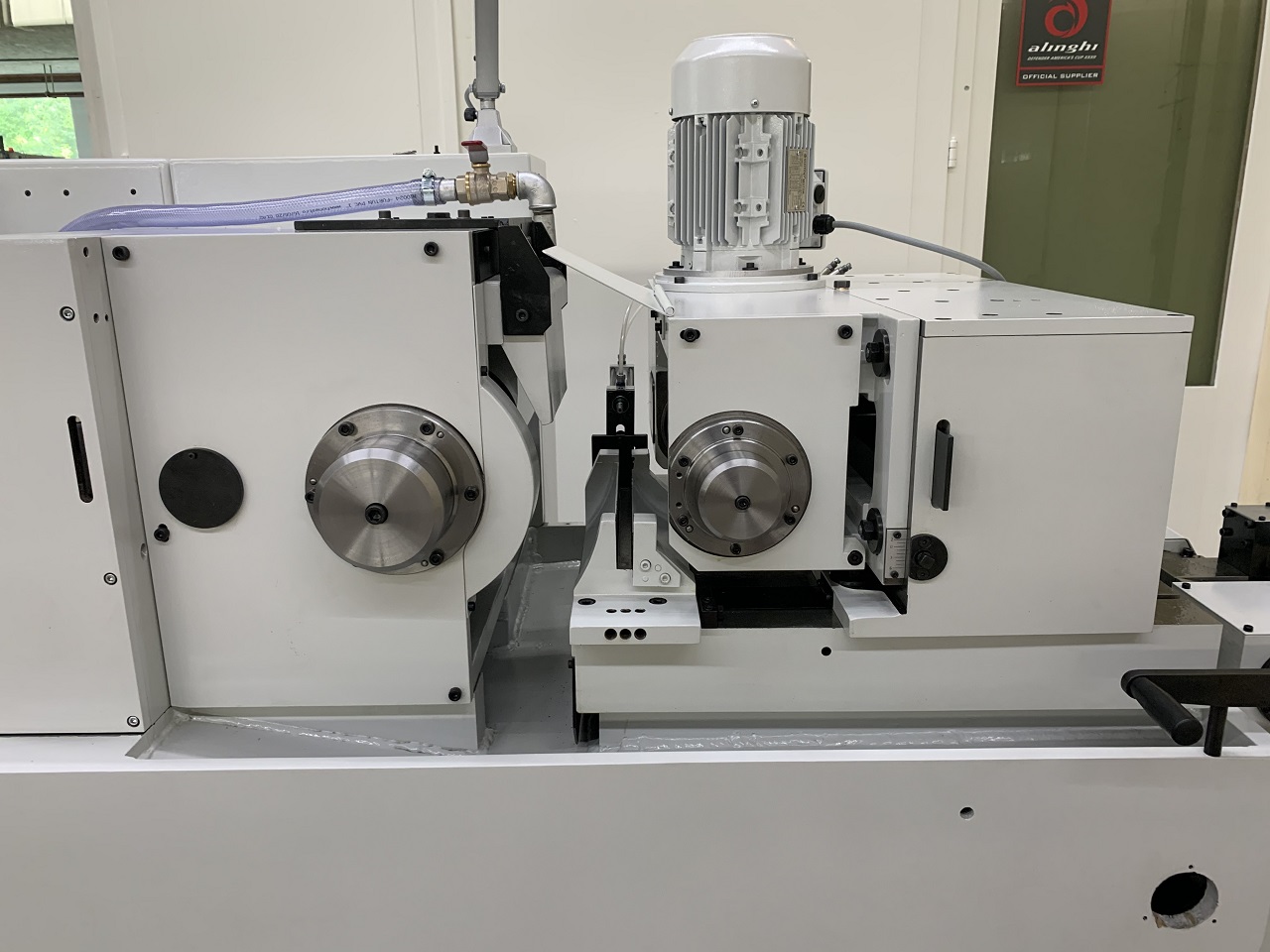

Grinding wheel : | ||
-diameter | 400 | mm |
-maximum width | 200 | mm |
-bore | 203.2 | mm |
Driving wheel : | ||
-diameter | 254 | mm |
-width | 200 | mm |
-bore | 127 | mm |

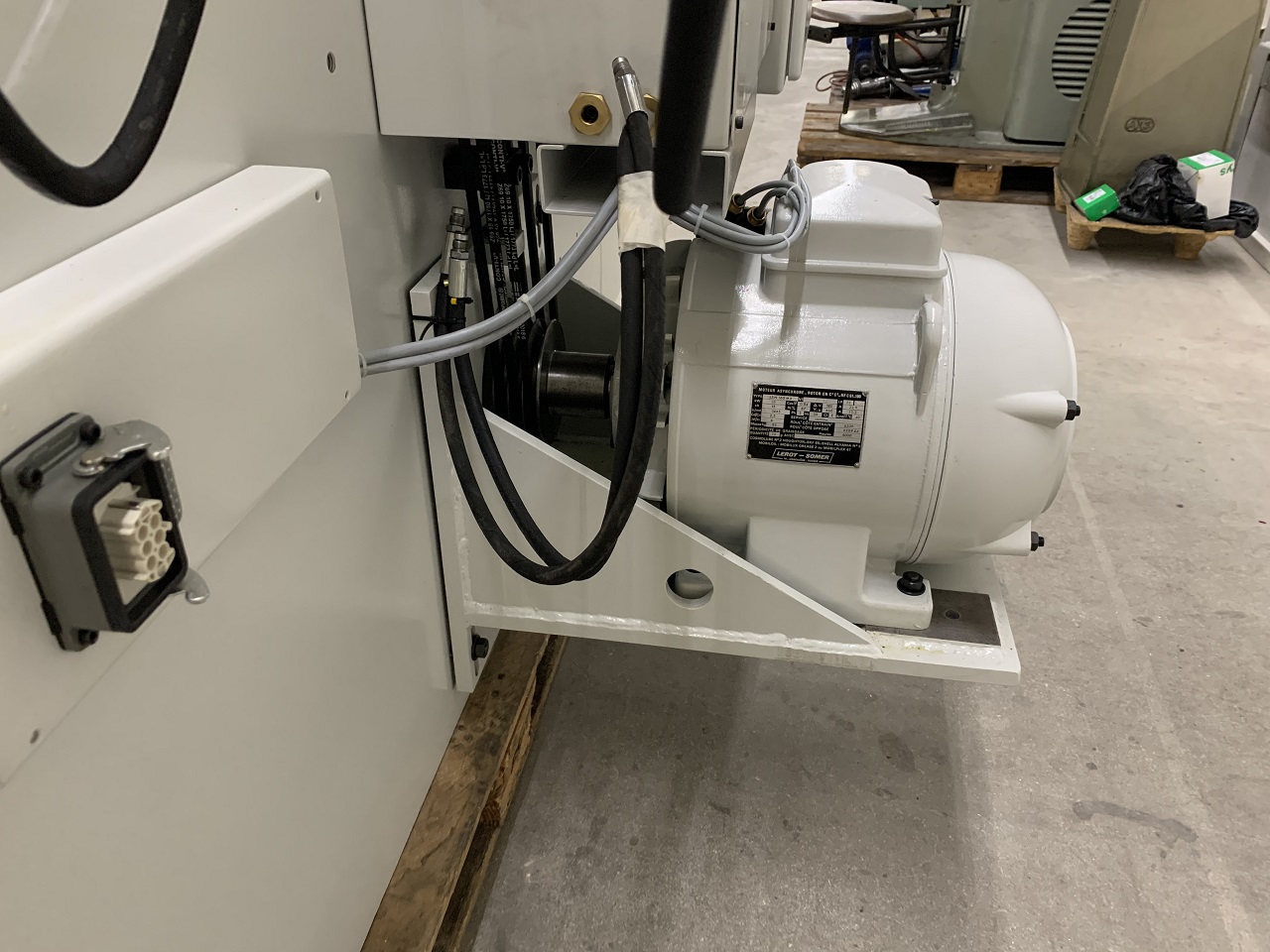

Main drive motor | 11-22 | kW |
Driving wheel motor | 1,1 | kW |
Driving wheel speed | 10 – 200 | U/Min |
Standard accessories : | ||
1 flange with grinding wheel | ||
1 flange with driving wheel | ||

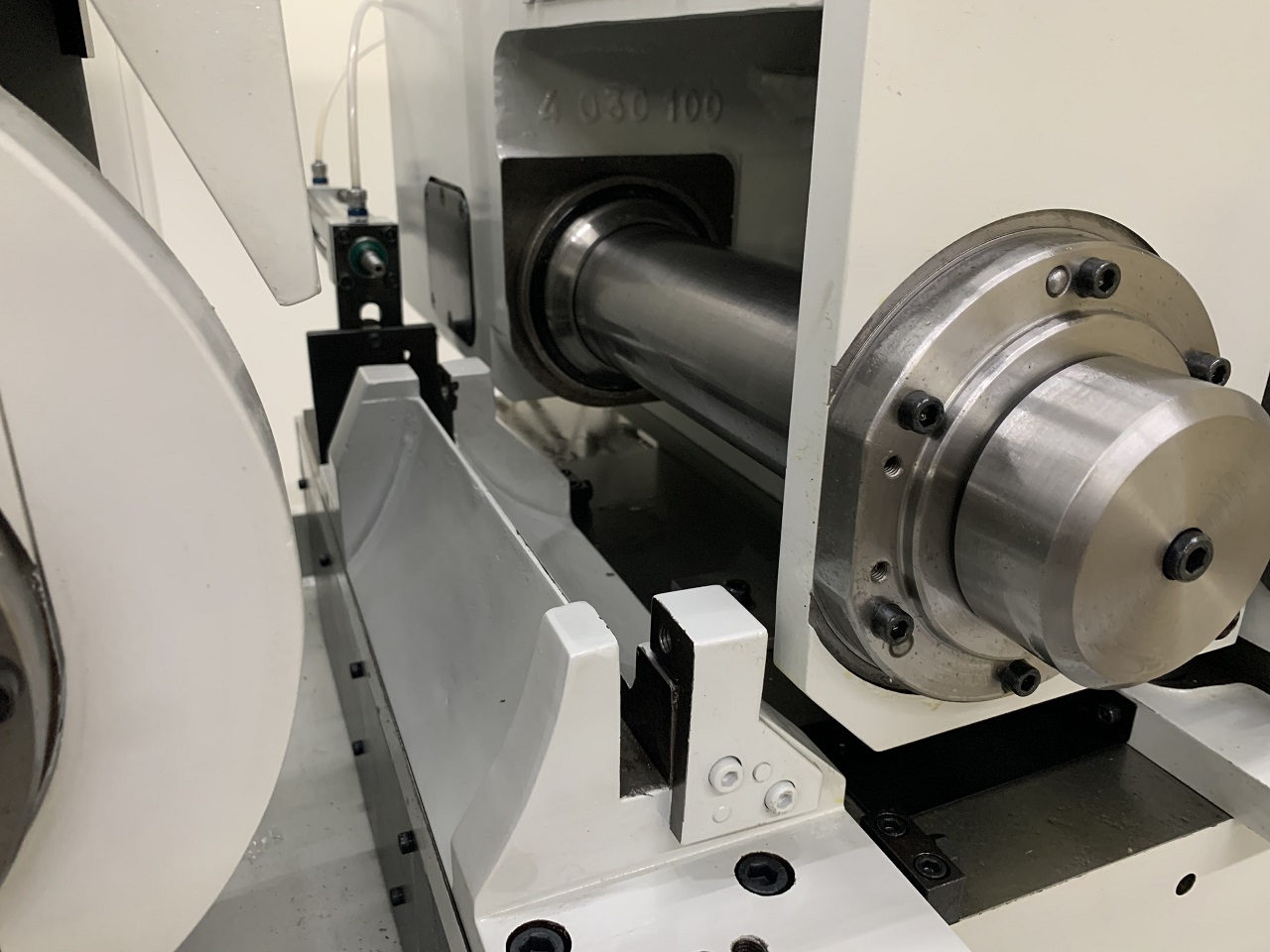

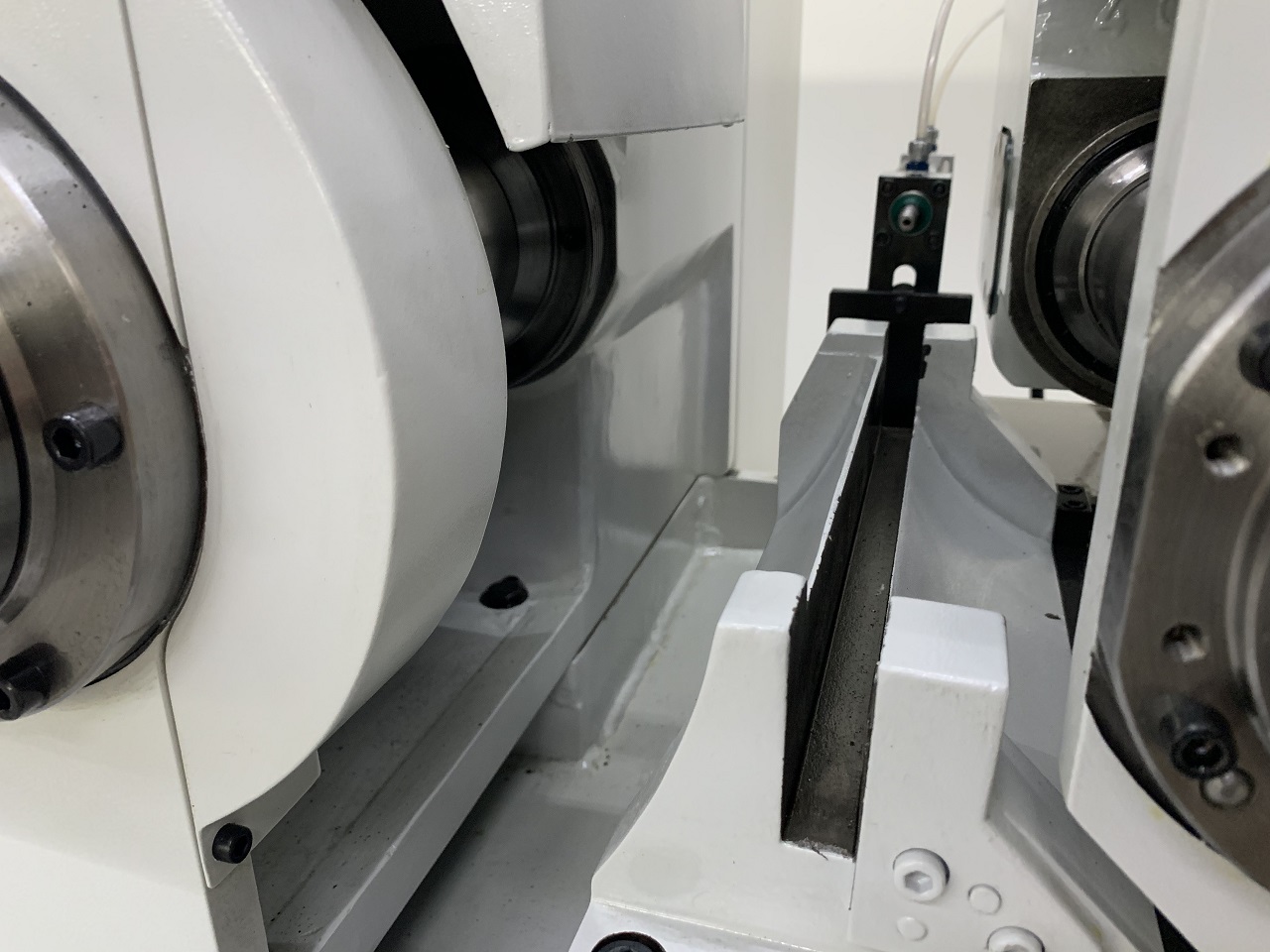

1 workpiece support bridge | ||
1 set of shims for workpiece support | ||

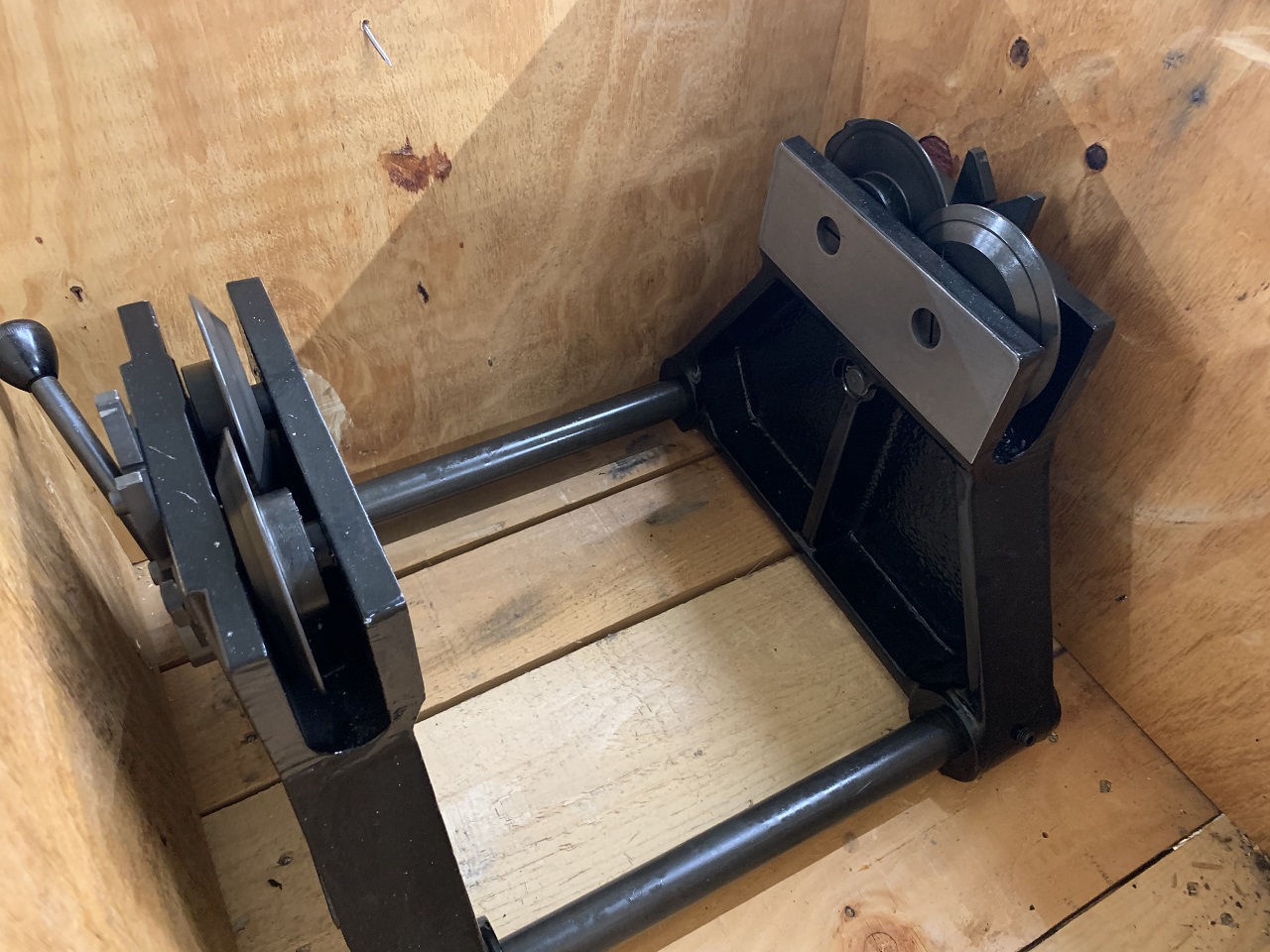

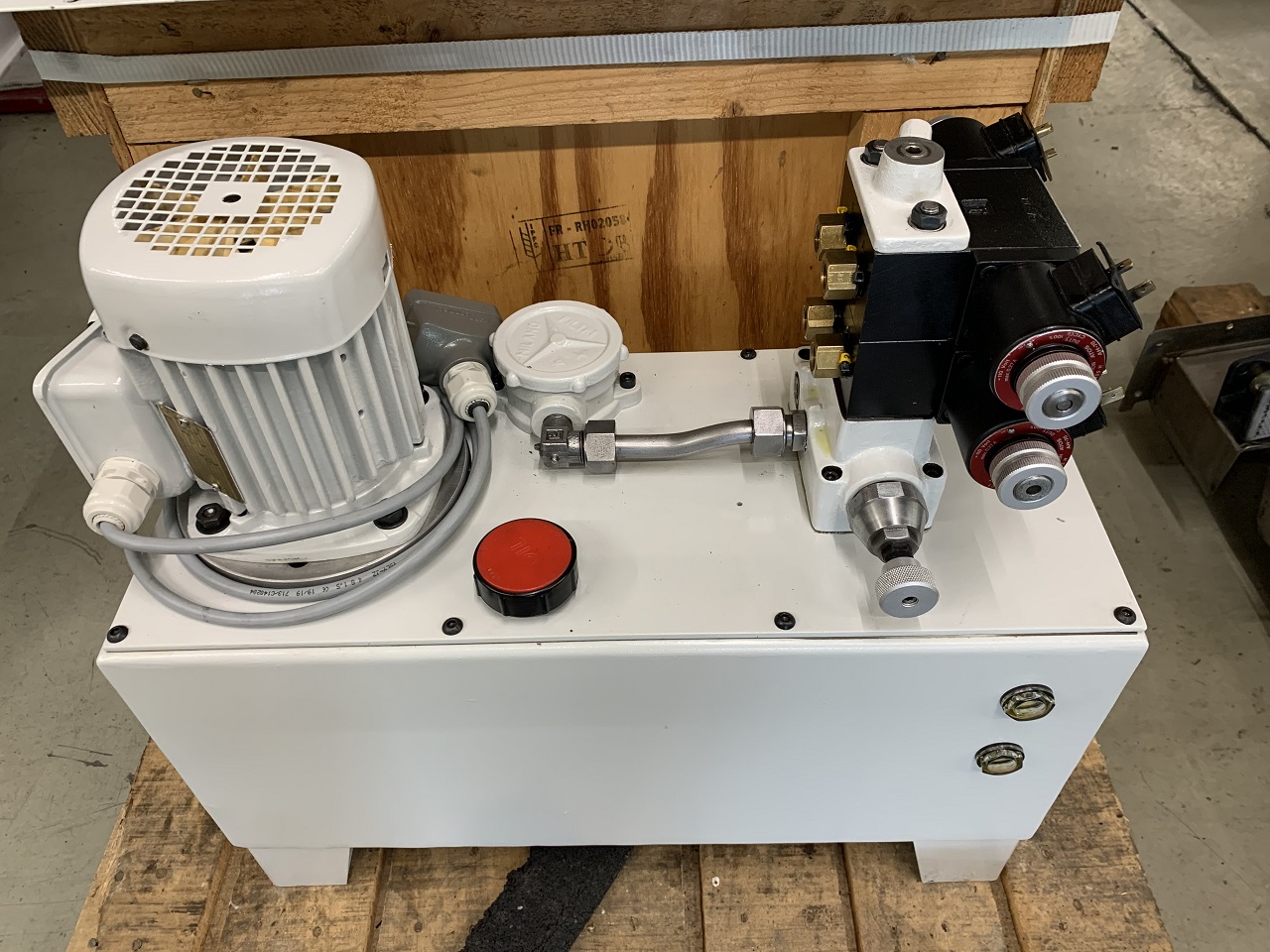

-Hydraulic dressing and trueing device for grinding and driving wheels | ||
-Variable speed drive of driving wheel | ||

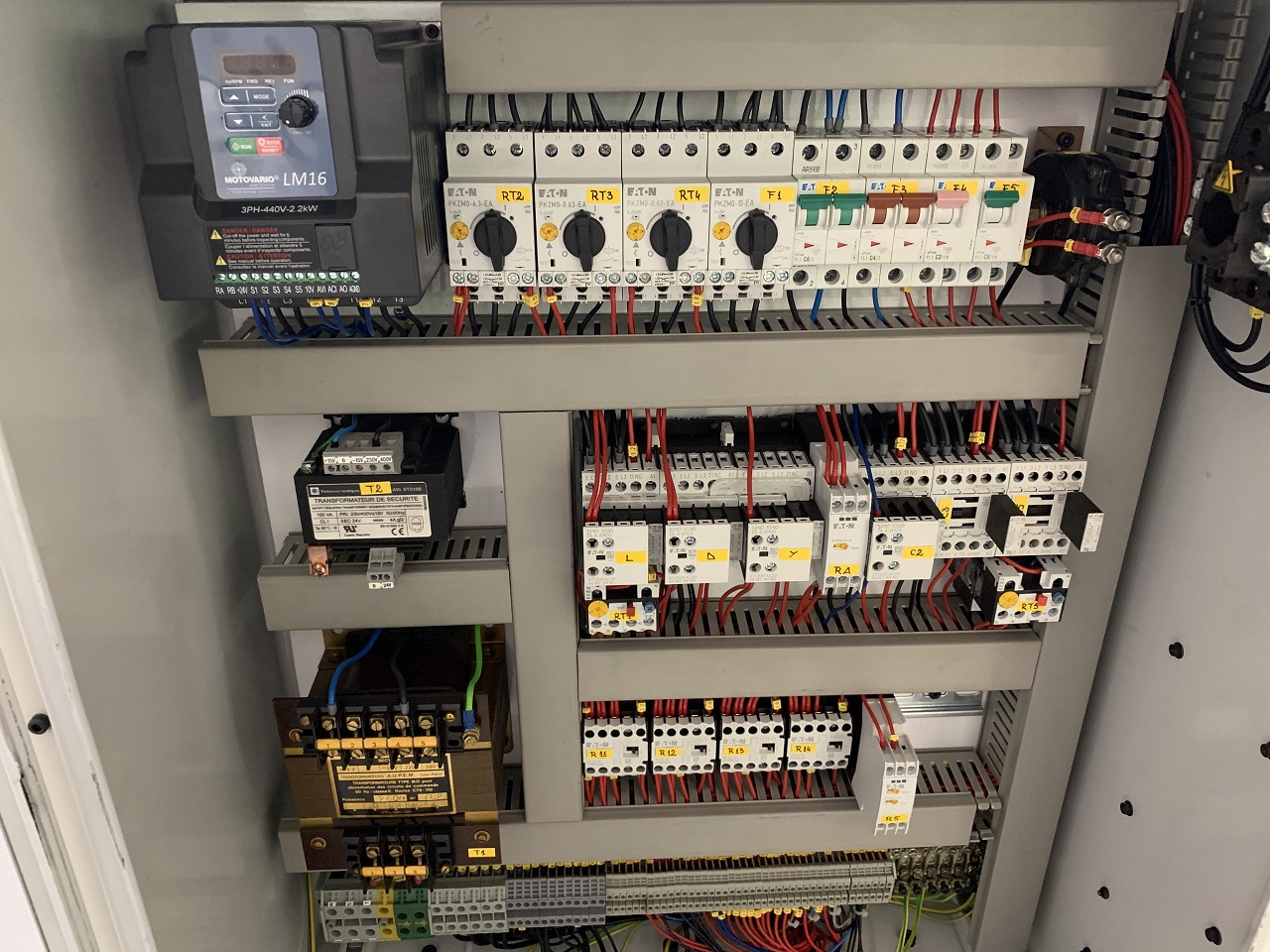

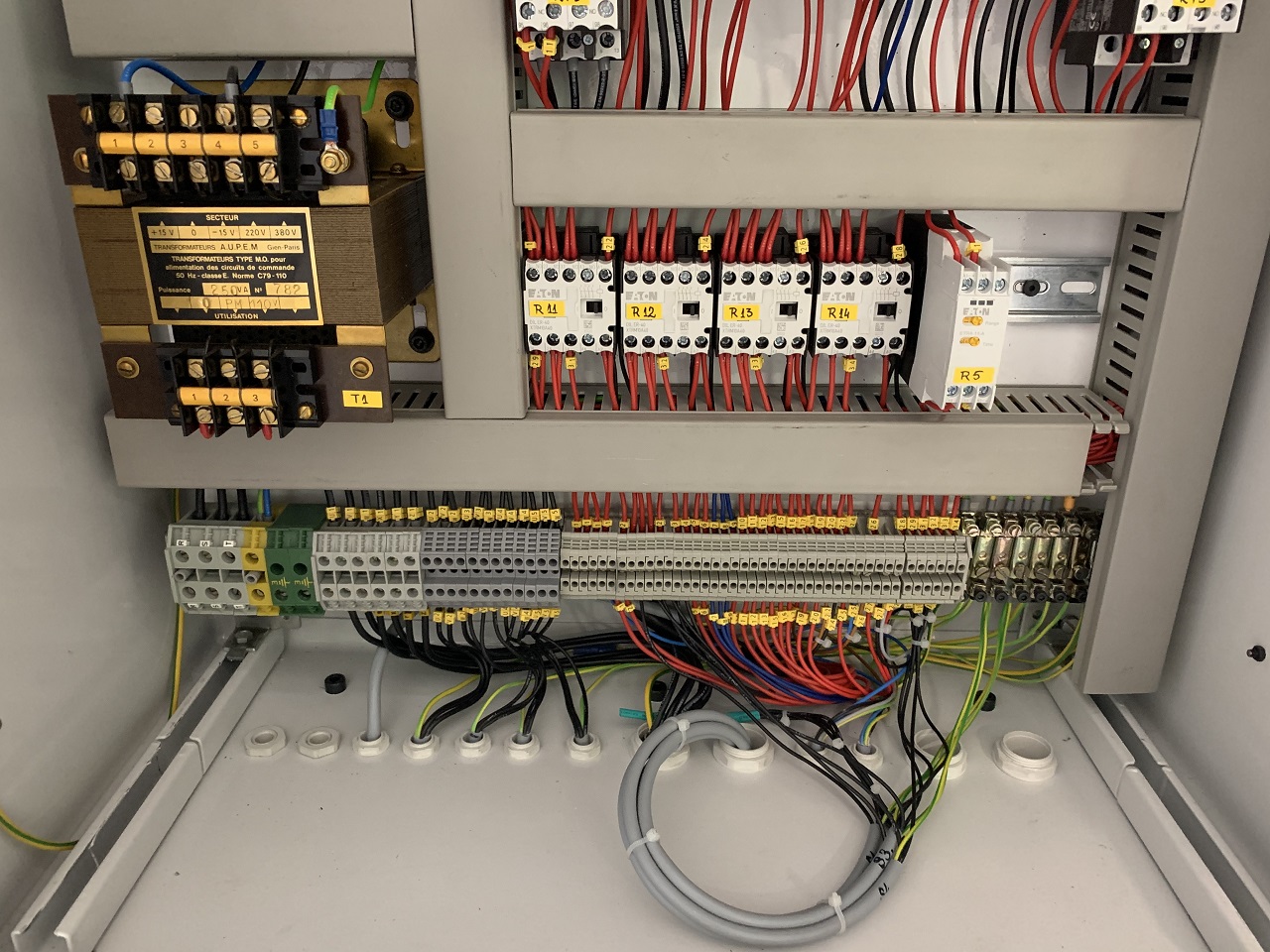

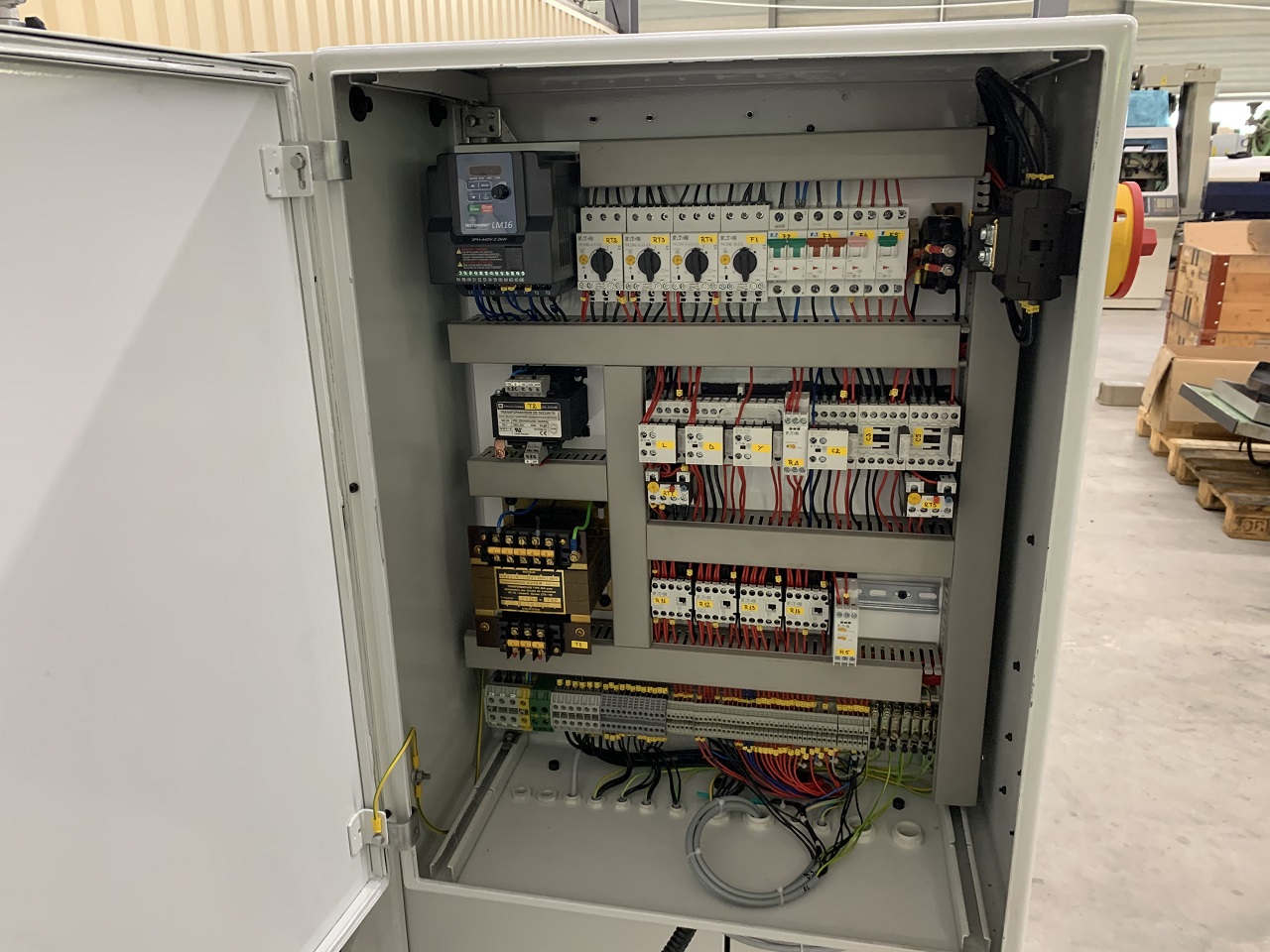

-Electrical equipment for 3x380 v, 50 Hz | ||
-Main drive motor, 11 kW | ||
-Ammeter for main drive motor | ||
Starter keys and operating manual |
