产品详情
| 中心距 |
| 中心高度 |
| 纵向滑动Z |
| 最大旅行 |
| 研磨长度，最大值 |
| 速度 |
| 决议 |
| 轮头滑块X |
| 最大旅行 |
| 速度 |
| 决议 |
| 车轮头 |
| 外部砂轮，Øx宽度x孔 |
| 驱动力 |
| 圆周速度 |
| 粗调 |
| 向右旋转范围 |
| 工头 |
| 旋转范围 |
| 速度范围 |
| 配合锥度 |
| 夹头 |
| 功率要求 |
| 尾架 |
| 配合锥度 |
| 桶行程 |
| 控制 |
| Distance between centers | 400 | mm |
| Centers height | 100 | mm |
| Longitudinal slide Z | ||
| Max. travel | 420 | mm |
| Grinding length, max | 400 | mm |
| Speed | 0.001 to 10’000 | mm/min |
| Resolution | 0.0001 | mm |
| Wheelhead slide X | ||
| Max. travel | 150 | mm |
| Speed | 0.001 to 10’000 | mm/min |
| Resolution | 0.0001 | mm |

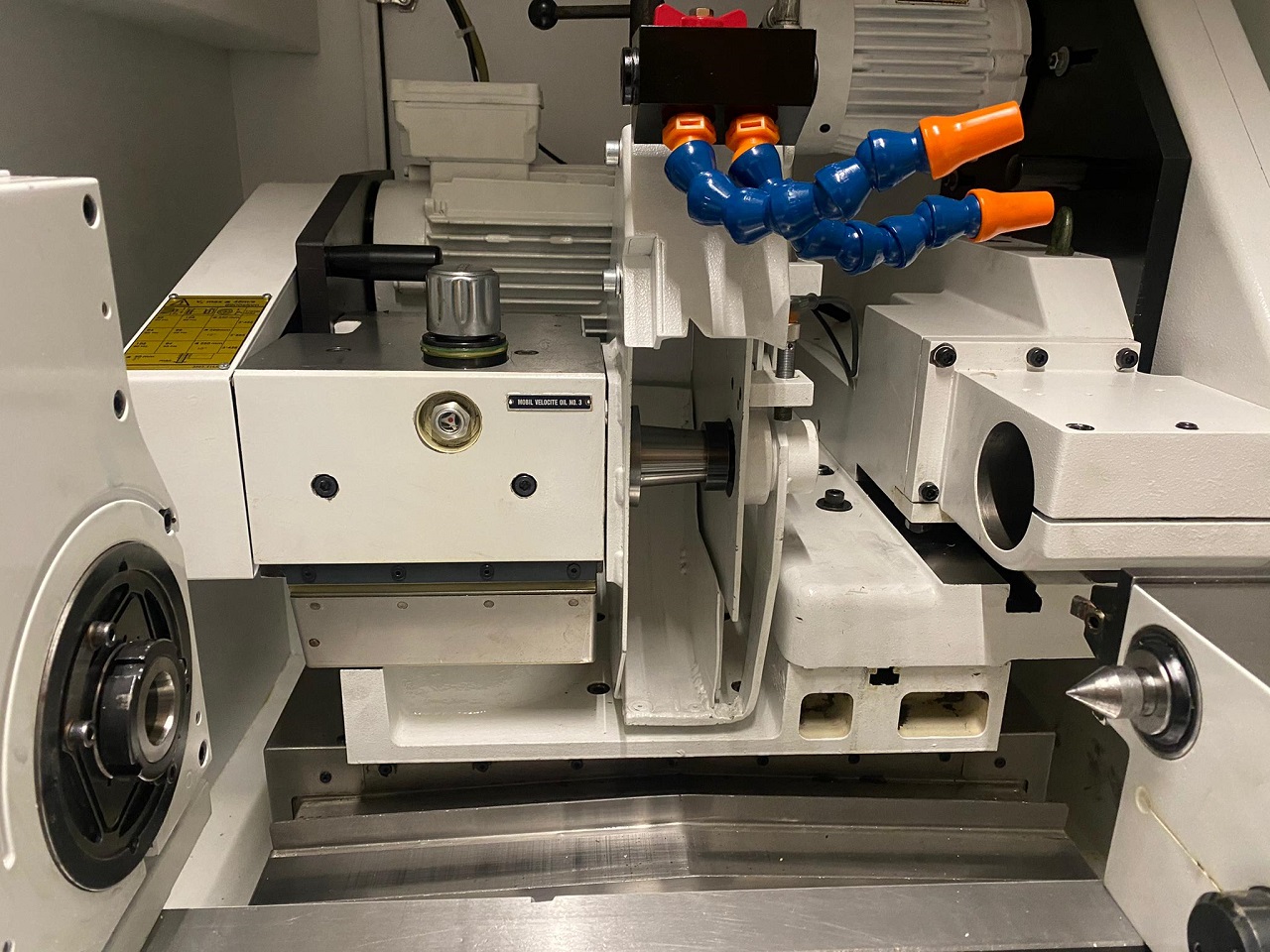

| Wheelhead | ||
| External grinding wheel, Ø x width x bore | 350 x 32 x 1217 | mm |
| Driving power | 3 | kW |
| Peripheral speed | 35 | m/s |
| Coarse adjustment | 120 | mm |
| Swivelling range rightwards | 30 | ° |

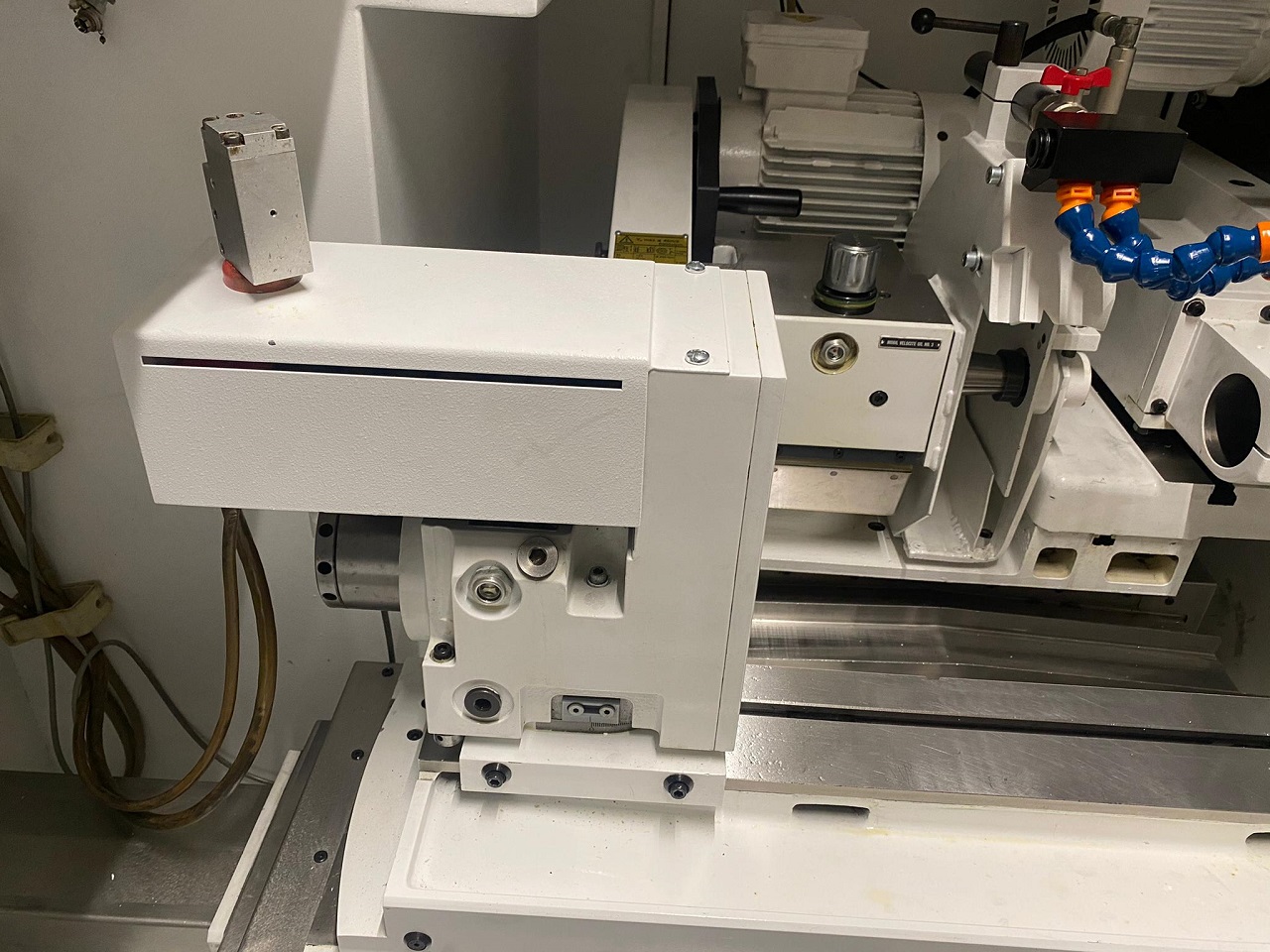

| Workhead | ||
| Swivel range | 0 – | 90° |
| Speed range | 30 – 1200 | min-1 |
| Fitting taper | MT4 | |
| Collets | W20 | |
| Power requirement | 0,5 | kW |

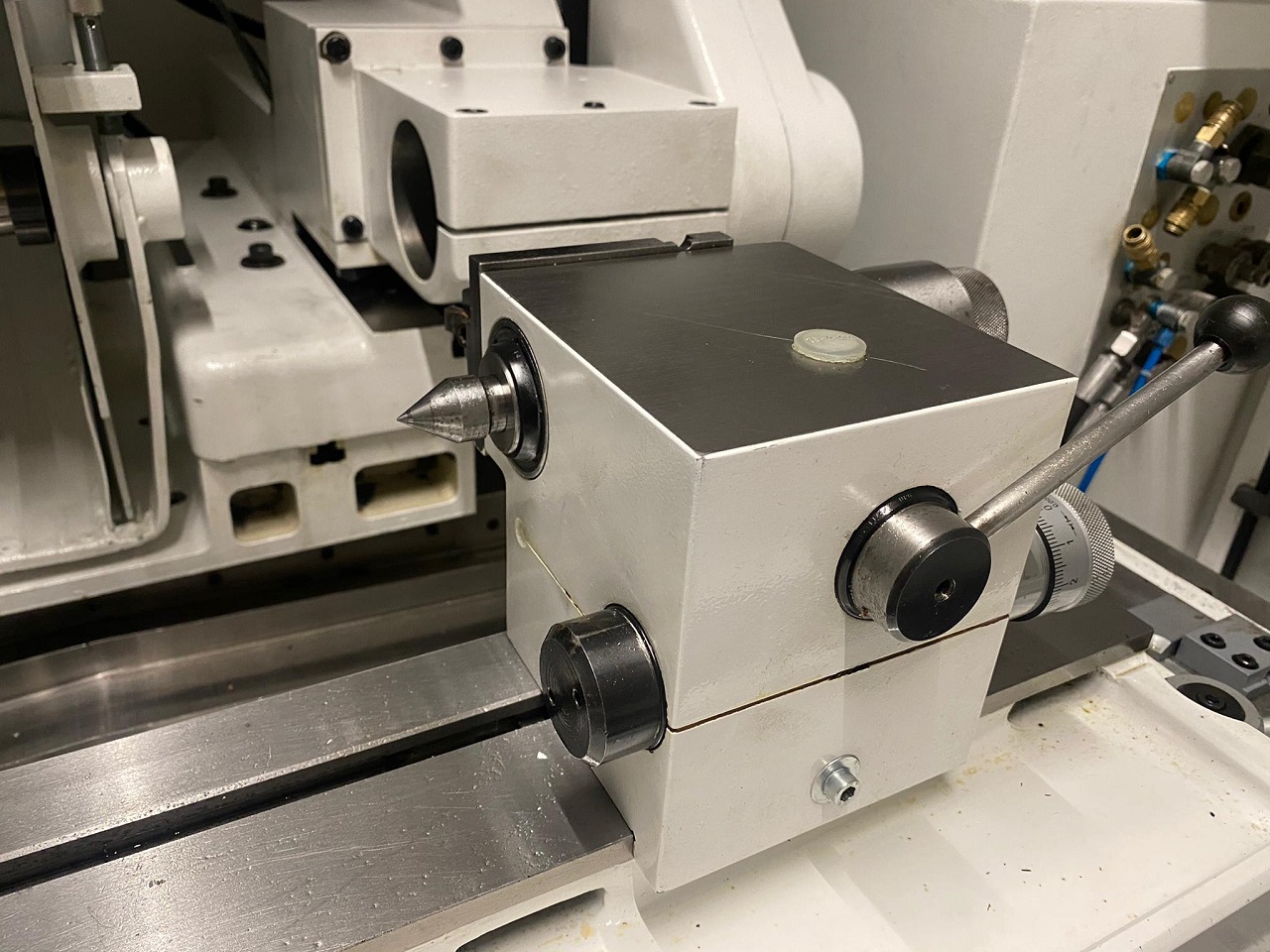

| Tailstock | ||
| Fitting taper | MT2 | |
| Barrel travel | 20 | mm |

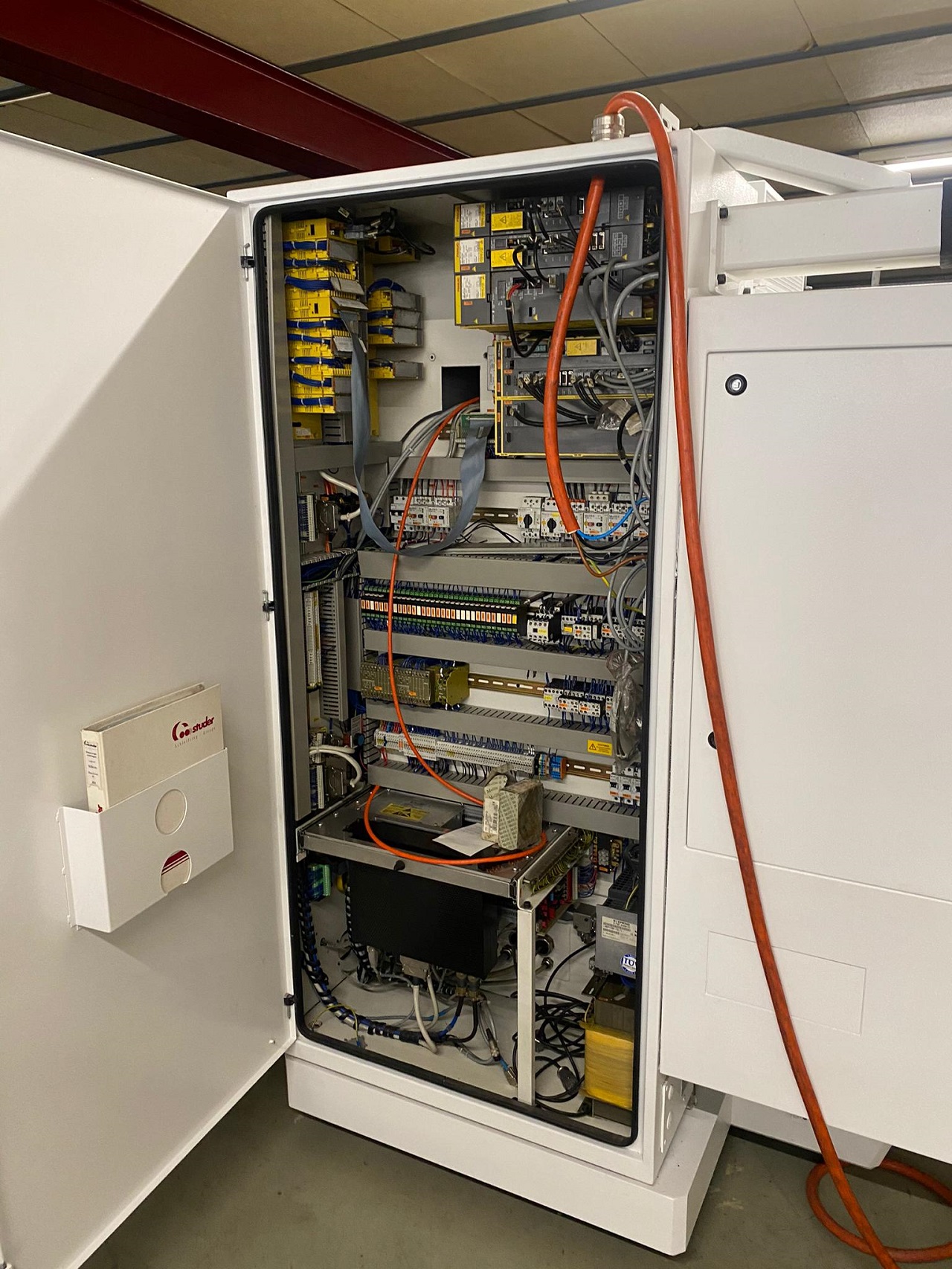

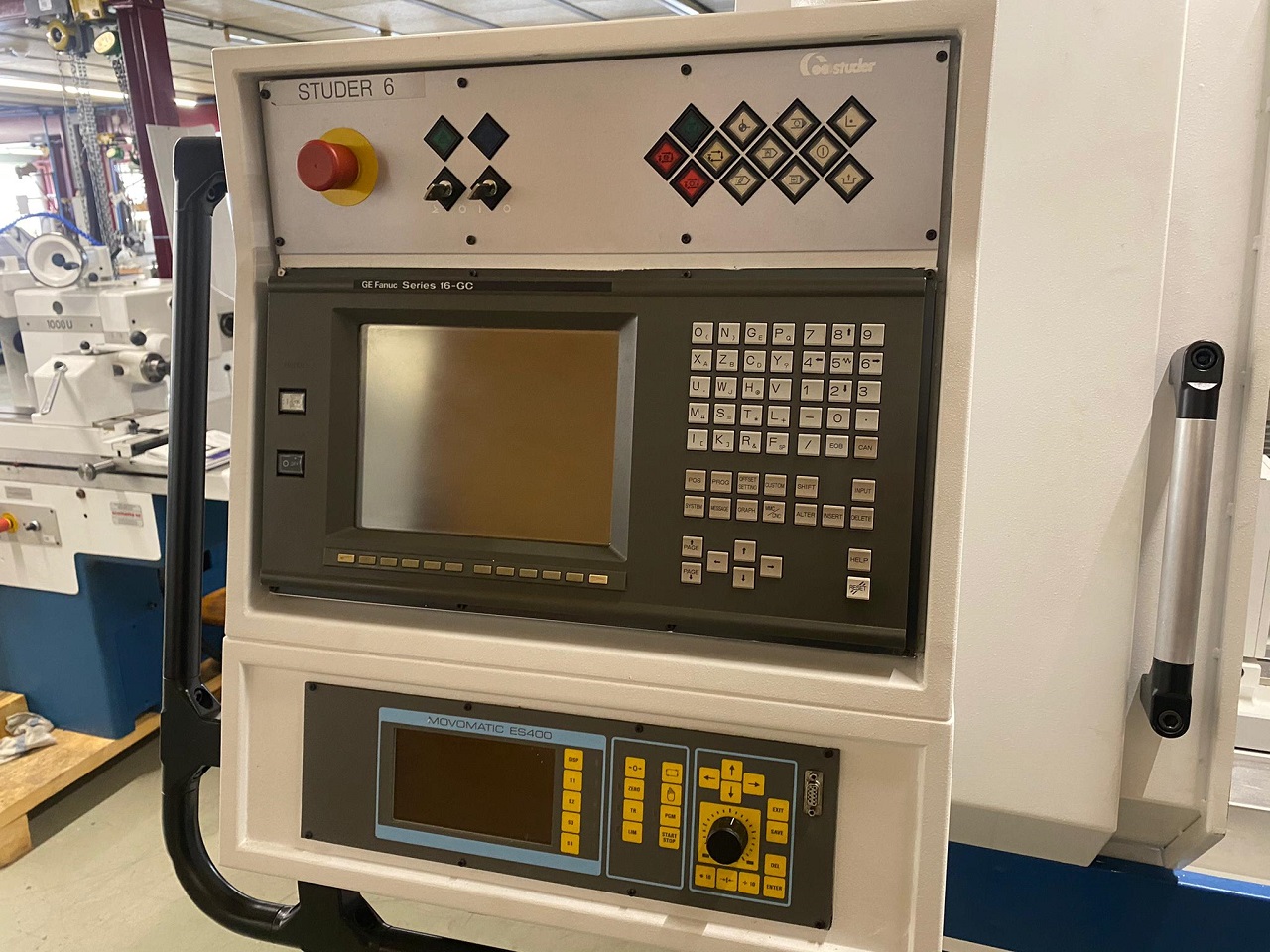

| Control | Fanuc series 16 | GC |
